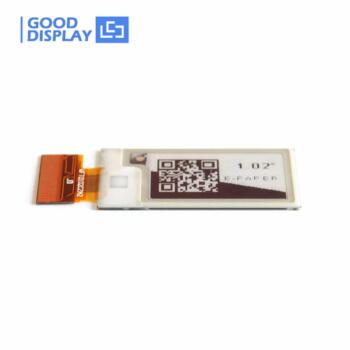

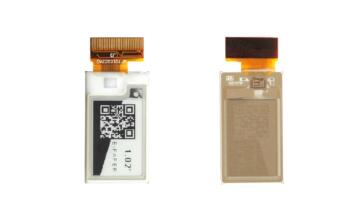

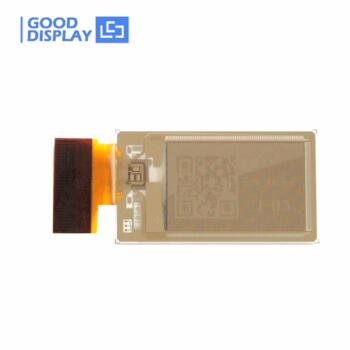

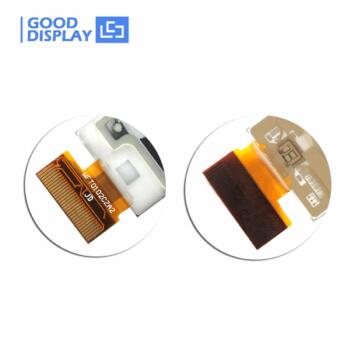

This is a 1.02 inch eink ePaper display with 128×80 resolution, SPI interface and capable of displaying images in black and white. Due to the bi-stable, the image once updated can stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products.
*NOTE: This product contains 2 pcs GDEW0102T4 E Ink panels together for sale at cheaper price!!!!!!
FLEXIBLE PURCHASE OPTION
*If you also desire our Flexible ePaper Display-1.02 inch ePaper Display flexible GDEW0102I3F, PLEASE CLICK THE PICTURE BELOW:
*If you want to add DESPI-C102 ESPECIALLY for the 1.02inch EPDs, PLEASE CLICK THE PICTURE BELOW:
*We also highly recommend to add Good Display’s ESP32 Evaluation Kit together!
- Versatile, portrait or landscape format
- Supporting partial refresh, refresh rate 0.3s/frame
- Bistable. (Image can stay on the display even when the power is off)
- I2C Signal Master Interface to read external temperature sensor
- Development platforms available STM32 / Arduino / ESP8266
WATCH THE VIDEO
RELATED INFORMATION FOR DOWNLOADING
GDEW0102T4 Arduino Sample Code
GDEW0102T4 Raspberry Pi Pico Sample Code
SUCCESSFUL APPLICATION BY OUR CLIENT
Product Name: Plant Watering Sensor EFEKTA eFlower (Zigbee)
Mini Digital Thermometer & Hygrometer (Zigbee)

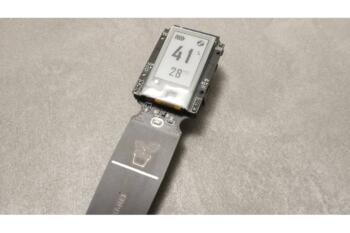

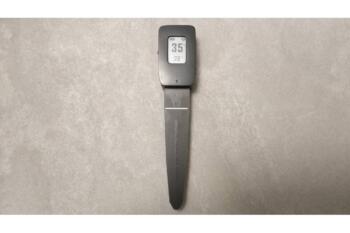

This is a compact wireless soil moisture sensor with 1.02-inch e-paper display (GDEW0102T4), supports working in Zigbee networks. Supported inZ2M, ZHA. The device has an industrial look, at least, i wanted to achieve this. The sensor has very good energy efficiency. Powered by CC2530 chip (Zigbee). The device is shipped fully wired with open source software preinstalled. The device can be purchased with or without a case.

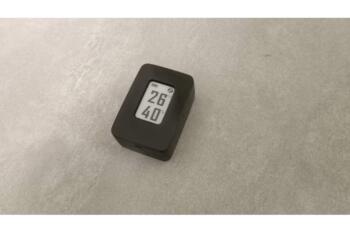

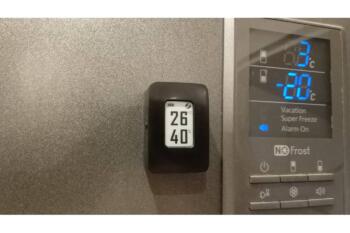

It is a miniature temperature and humidity sensor with a small e-ink display. The sensor has an industrial look, at least I wanted to achieve this.
Powered by CC2530 chip (Zigbee). The device is shipped fully wired with open source software preinstalled. The device can be purchased with or without a case.
