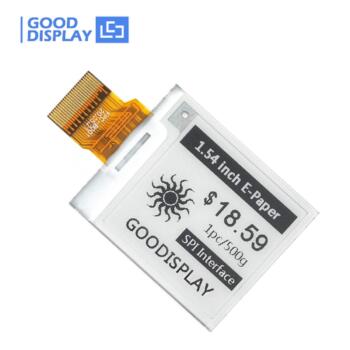

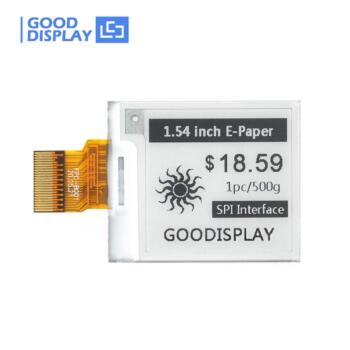

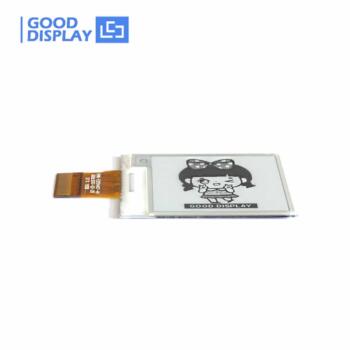

1.54” Grayscale E-Paper display Good Display Fast Refresh

by GoodisplayEpaper 24 orders


$8.88

Part Number: GDEH0154D67
Size: 1.54 inch
IC: SSD1681
RESOLUTION: 200×200

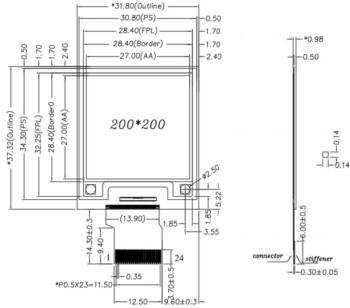

OUTLINE SIZE(mm): 31.8×37.32×1.05
OPERATING TEMP.: 0℃~50℃
STORAGE TEMP.: -25℃~70℃

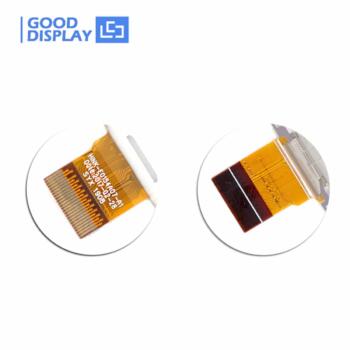

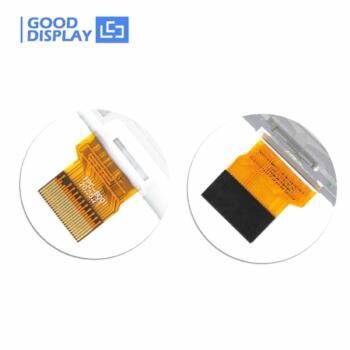

CONNECTOR: 24 Pin FPC
MAX GRAYSCALE: 4
FULL REFRESH(s): 2
PARTIAL REFRESH TIME(s): 0.26
POWER CONSUMPTION OF THE REFRESH(mW): 4.95
STANDBY POWER CONSUMPTION (mW): 0.006
Share
Tweet
Share
Reddit1
Vote
Email
1 Shares

230 in stock

Extend your e-reader warranty for two years. Good e-Reader will coordinate the repairs with the manufacturers if your device is damaged during this time.

SKU: GDEH0154D67 Categories: , Tags: , , , , , , , , , ,

Description

Bestseller 1.54 inch monochrome ePaper display with 200×200 resolution, SPI interfaced, supporting partial updating images.
Due to the bi-stable, the image once updated can stay on the display even when power is completely disconnected.
Since E-paper display is a new thing to many people they may ask what exactly it can be used for.
Here are just some cases but we super-look forward to seeing YOU to excel and develop this tiny gadet beyond our imagination.
◇ Logistic label
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Bitcoin price ticker
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
◇ Crypto Ticker meter

******A long list still waiting for your extraordinary creation******

FLEXIBLE PURCHASE OPTION

*If you want to add DESPI-C02 individually into your CART, PLEASE CLICK THE PICTURE BELOW:

*If you want to add DESPI-C03 individually into your CART, PLEASE CLICK THE PICTURE BELOW:



*We also highly recommend to add Good Display’s ESP32 Evaluation Kit together!

demo board E-INK screen driver board support WIFI and BLE, ESP32-02
demo board E-INK screen driver board support WIFI and BLE, ESP32-02



FEATURE

  • Supporting Four Grayscale
  • Black and white monochrome is easy to read
  • Partial Update(0.26s/frame)
  • Versatile, portrait or landscape format
  • Supporting partial refresh, refresh rate 0.3s/frame
  • Bistable. (Image can stay on the display even when the power is off)
  • I2C Signal Master Interface to read external temperature sensor
  • Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

WATCH THE VIDEO

RELATED INFORMATION FOR DOWNLOADING

GDEH0154D67 Specification

IC Driver SSD1681

GDEH0154D67 Bitmap Conversion

GDEH0154D67 STM32 Sample Code

GDEH0154D67 Arduino Sample Code

GDEH0154D67 Raspberry Pi Sample Code

GDEH0154D67 ESP8266 Sample Code

GDEH0154D67 ESP32 Sample Code

GDEH0154D67 Raspberry Pi Pico Sample Code



SUCCESSFUL APPLICATION BY OUR CLIENT

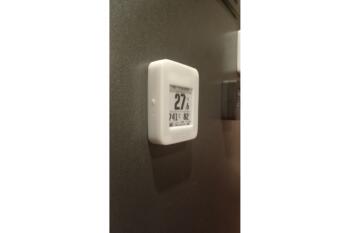

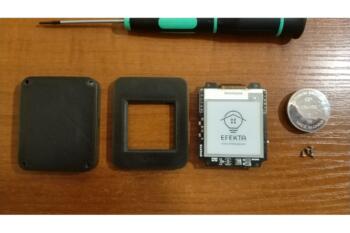

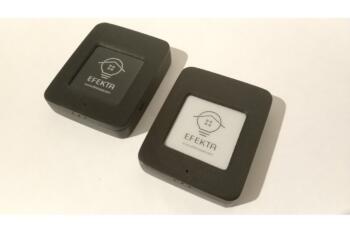

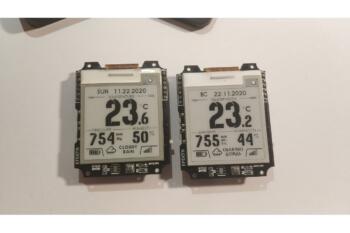

Product Name:  Wireless mini weather station + 1.54-inch e-paper

It is a compact wireless micro weather station with a 1.54 Inch e-paper display with screen resolution of 200×200 pixels(GDEH0154D67), the highest resolution(number of pixels per 1 inch), the best contrast(black is black). The device has an industrial look, at least I wanted to achieve this, very, very thin. The sensor has very good energy efficiency. Powered by nRF52 multi-protocol chip (BLE, Zigbee, Thread, ESB). The device comes preinstalled with MySensor Protocol (ESB) wireless networking software – www.mysensors.org, can also work as a standalone device without a network. Can use both a ready-made device and a device for developing your own software right away.

Wireless mini weather station + 1.54-inch e-paper 1

Wireless mini weather station + 1.54-inch e-paper 4

SELECTION GUIDE

PART NUMBERSIZEICCOLORGREYSCALERESOLUTIONACTIVE SIZE(mm)FULL REFRESH TIME (S)OPERATING TEMP.PARTIAL REFRESHINTERFACE
GDEW0102T41.02”UC8175BW2128×8021.76×14.0030℃~50℃√SPI
GDEW0102I3F（FLEXIBLE）1.02”UC8175BW2128×8021.76×14.0030℃~50℃√SPI
GDEW0154M091.54”JD79653BW2200×20027.60×27.600.820℃~50℃√SPI
GDEW0154T8D1.54”UC8151DBW4152×15227.51×27.5130℃~50℃√SPI
GDEH0154Z901.54”SSD1681BWR2200×20027.00×27.00150℃~40℃SPI
GDEW0213I5FD（FLEXIBLE）2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEM0213B742.13”SSD1680BW4250×12248.55×23.7030℃~50℃SPI
GDEY0213Z982.13”SSD1680BWR2250×12248.55×23.70140℃~40℃SPI
GDEW0213T5D2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEW0213T5D-FL01(With Frontlight)2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEW026T0D2.6”UC8151DBW4296×15260.09×30.7030℃~50℃√SPI
GDEW027W32.7”EK79652BW4264×17657.29×38.1930℃~50℃√SPI
GDEW027W3-T(With Touch Panel)2.7”EK79652BW4264×17657.29×38.1930℃~50℃√SPI
GDEH029Z132.9”UC8151DBWR2296×12866.90×29.06150℃~40℃SPI
GDEW029I6FD（FLEXIBLE）2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW029T5D2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW029T5D-FL02(With Frontlight)2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW0371W73.71”UC8171BW4416×24081.54×47.0440℃~50℃SPI
