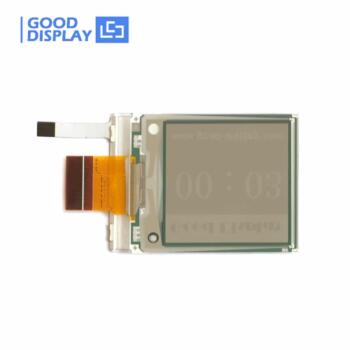

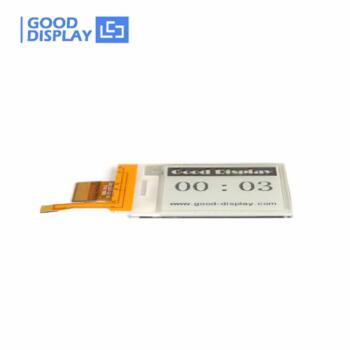

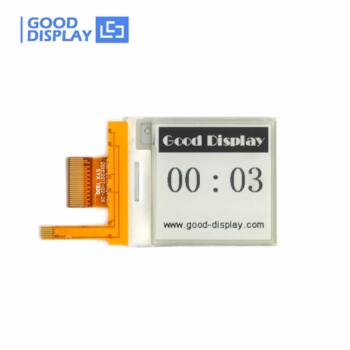

Ultra Low Power E Ink 1.54inch ePaper Frontlight GDEY0154D67-FL

Name: Ultra Low Power E Ink 1.54inch ePaper Frontlight GDEY0154D67-FL
Brand: GDEH0154D67-FL
SKU: GDEH0154D67-FL
Price: 13.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

by GoodisplayEpaper 1 orders

$13.00

Part Number: GDEY0154D67-FL
Size: 1.54 inch
IC: SSD1681
RESOLUTION: 200×200
OUTLINE SIZE(mm): 31.8×37.32×1.8
OPERATING TEMP.: 0℃~50℃
STORAGE TEMP.: -25℃~60℃

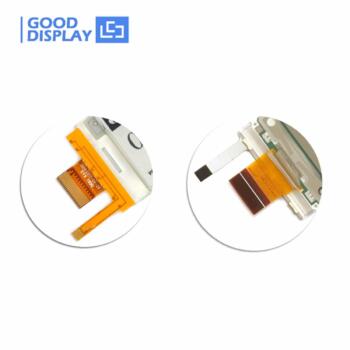

CONNECTOR: 24 Pin FPC
MAX GRAYSCALE: 4
FULL REFRESH(s): 2
PARTIAL REFRESH TIME(s): 0.26
POWER CONSUMPTION OF THE REFRESH(mW): 4.95
STANDBY POWER CONSUMPTION (mW): 0.006
Share
Tweet
Share
Reddit1
Vote
Email
1 Shares

Out of stock

SKU: GDEH0154D67-FL Categories: Digital Signage, E-Paper Displays Tags: 1.54inch, 1.54inch epaper, Arduino, backlight, E Ink panel, E-paper display, epaperdisplay, esp32, fast refresh, fast update, four grayscale, frontlight, GDEY0154D67, goodisplay, hot product, monochrome, partial refresh, popular item, popular product, raw display, raw display panel, STM32, touch screen, touchscreen, vorderlicht

Report abuse

Description

The best seller from Goodisplay, this 1.54 inch monochrome ePaper display with 200×200 resolution, SPI interface. Due to the bi-stable, the image once updated can stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products. This version released also has a front light so that users can apply it into more scenes.

Since E-paper display is a new thing to many people they may ask what exactly it can be used for.
Here are just some cases but we super-look forward to seeing YOU to excel and develop this tiny gadet beyond our imagination.

◇ Logistic Label
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Bitcoin price ticker
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
******A long list still waiting for your extraordinary creation******

FLEXIBLE PURCHASE OPTION

*For initial testing of ePaper with front light or touch screen or you wish to use Raspberry Pi, this DESPI-C03 adapter is the best choice!

This adapter is used for connecting E-paper with front light or touch panel and strongly recommended when especially for Raspberry

*We also highly recommend to add Good Display’s ESP32 Evaluation Kit together!

ESP32-03 E-INK display module for touchable e-paper screen, support wifi and BLE

FEATURE

Supporting 4 Grayscale
Frontlight and Backlight
Partial Update(0.26s/frame)
Versatile, portrait or landscape format
Bistable. (Image can stay on the display even when the power is off)
I²C Signal Master Interface to read external temperature sensor
Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

WATCH THE VIDEO

RELATED INFORMATION FOR DOWNLOADING

GDEH0154D67 Specification

IC Driver SSD1681

GDEH0154D67 Bitmap Conversion

GDEH0154D67 STM32 Sample Code

GDEH0154D67 Arduino Sample Code

GDEH0154D67 Raspberry Pi Sample Code

GDEH0154D67 ESP8266 Sample Code

GDEH0154D67 ESP32 Sample Code

GDEH0154D67 Raspberry Pi Pico Sample Code

Front-light Drawing of 1.54 inch EPD

SELECTION GUIDE

PART NUMBER	SIZE	IC	COLOR	GREYSCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	INTERFACE
GDEW0102T4	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0102I3F（FLEXIBLE）	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0154M09	1.54”	JD79653	BW	2	200×200	27.60×27.60	0.82	0℃~50℃	√	SPI
GDEW0154T8D	1.54”	UC8151D	BW	4	152×152	27.51×27.51	3	0℃~50℃	√	SPI
GDEH0154Z90	1.54”	SSD1681	BWR	2	200×200	27.00×27.00	15	0℃~40℃		SPI
GDEW0213I5FD（FLEXIBLE）	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEM0213B74	2.13”	SSD1680	BW	4	250×122	48.55×23.70	3	0℃~50℃		SPI
GDEY0213Z98	2.13”	SSD1680	BWR	2	250×122	48.55×23.70	14	0℃~40℃		SPI
GDEW0213T5D	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW0213T5D-FL01(With Frontlight)	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW026T0D	2.6”	UC8151D	BW	4	296×152	60.09×30.70	3	0℃~50℃	√	SPI
GDEW027W3	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEW027W3-T(With Touch Panel)	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEH029Z13	2.9”	UC8151D	BWR	2	296×128	66.90×29.06	15	0℃~40℃		SPI
GDEW029I6FD（FLEXIBLE）	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D-FL02(With Frontlight)	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW0371W7	3.71”	UC8171	BW	4	416×240	81.54×47.04	4	0℃~50℃		SPI

SIZE ABOVE 4.2”

PART NUMBER	SIZE	IC	GREYSCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	INTERFACE
GDEW042C37	4.2”	UC8176	2	400×300	84.80×63.60	28	0℃~40℃	SPI
GDEW042T2	4.2”	UC8176	4	400×300	84.80×63.60	3	0℃~50℃	SPI
GDEH042Z21	4.2”	UC8276	2	400×300	84.80×63.60	15	0℃~40℃	SPI
GDEW0583C64	5.83”	UC8159	2	600×448	118.80×88.26	25	0℃~40℃	SPI
GDEW0583T8	5.83”	UC8179	2	648×480	119.23×88.32	4	0℃~50℃	SPI
GDEW0583Z83	5.83”	UC8179	2	648×480	119.23×88.32	12	0℃~40℃	SPI
GDEY075Z08	7.5”	UC8179	2	800×480	163.20×97.92	12	0℃~40℃	SPI
GDEY075T7	7.5”	UC8179	4	800×480	163.20×97.72	3	0℃~50℃	SPI
