Description

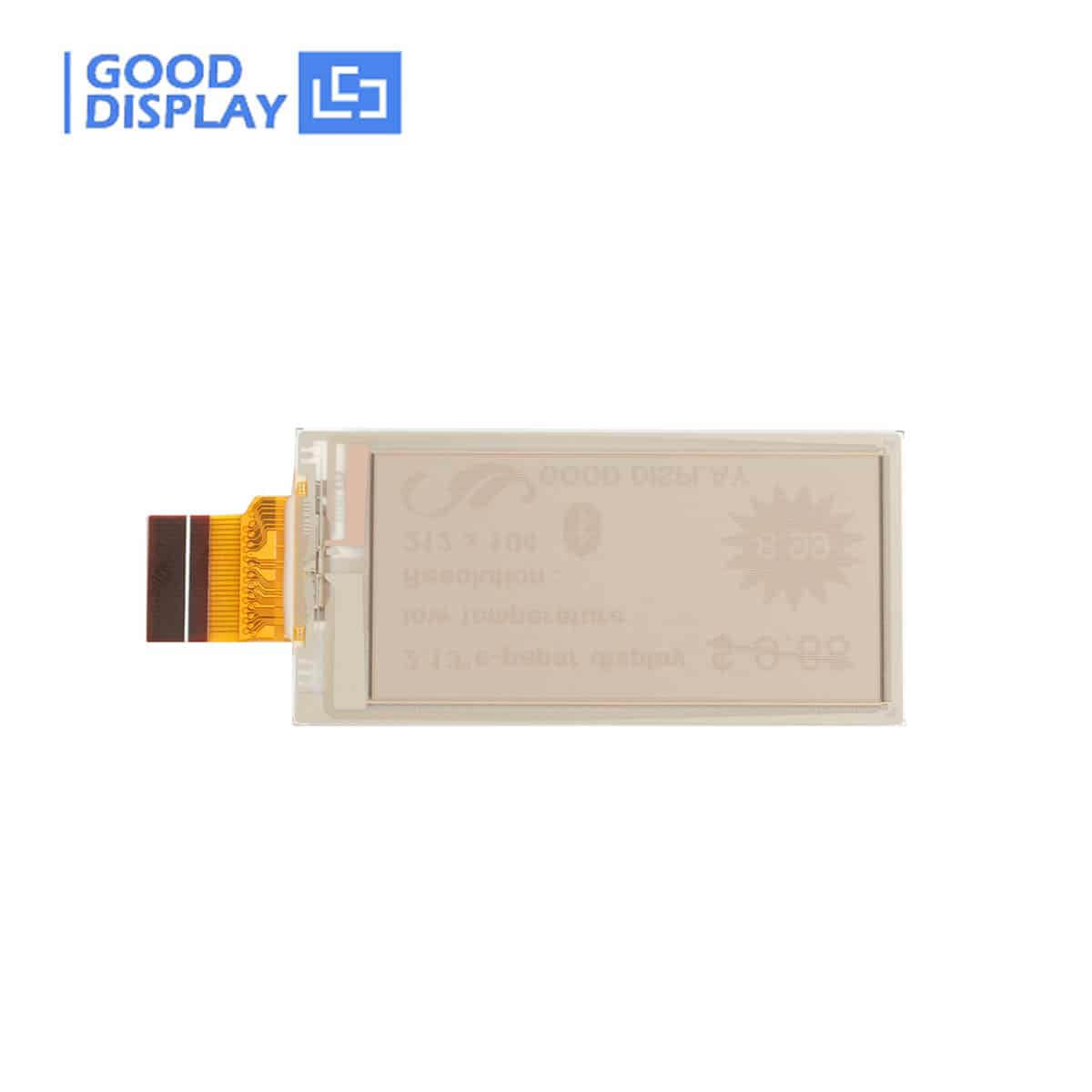

This is a 2.13 inch low temperature -25~10℃ e ink panel with 212×104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don’t require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This E Ink panel GDEW0213V7LT is perfect for low power devices powered by solar or batteries, and it’s also suitable for the cold environment.
FLEXIBLE PURCHASE OPTION
*If you want to add DESPI-C02 individually into your CART, PLEASE CLICK THE PICTURE BELOW:
*DESPI-C02 is the special adapter for our E-paper display! EASY TO USE!
FEATURE
- Black and white monochrome is easy to read
- Versatile, portrait or landscape format
- Supporting partial refresh, the refresh rate is 0.3s/frame
- Bistable. (Image can stay on the display even when the power is off)
- I2C Signal Master Interface to read external temperature sensor
- Low operating temperature range: -25~10℃ (Normal e-paper display: 0~50℃, Normal color e-paper display: 0℃~40℃).
- Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
RELATED INFORMATION FOR DOWNLOADING
1) GDEW0213V7LT Specification
2) IC Driver UC8151C Datasheet
3) GDEW0213V7LT STM32 Sample Code
USING IMAGE TO ARRAY TO PROCESS YOUR IMAGE FOR THE EPAPER DISPLAY
SELECTION GUIDE
PART NUMBER | SIZE | IC | COLOR | GREYSCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | INTERFACE |
GDEW0102T4 | 1.02” | UC8175 | BW | 2 | 128×80 | 21.76×14.00 | 3 | 0℃~50℃ | √ | SPI |
GDEW0102I3F(FLEXIBLE) | 1.02” | UC8175 | BW | 2 | 128×80 | 21.76×14.00 | 3 | 0℃~50℃ | √ | SPI |
GDEW0154M09 | 1.54” | JD79653 | BW | 2 | 200×200 | 27.60×27.60 | 0.82 | 0℃~50℃ | √ | SPI |
GDEW0154T8D | 1.54” | UC8151D | BW | 4 | 152×152 | 27.51×27.51 | 3 | 0℃~50℃ | √ | SPI |
GDEH0154Z90 | 1.54” | SSD1681 | BWR | 2 | 200×200 | 27.00×27.00 | 15 | 0℃~40℃ | SPI | |
GDEW0213I5FD(FLEXIBLE) | 2.13” | UC8151D | BW | 4 | 212×104 | 48.55×23.71 | 3 | 0℃~50℃ | √ | SPI |
GDEM0213B74 | 2.13” | SSD1680 | BW | 4 | 250×122 | 48.55×23.70 | 3 | 0℃~50℃ | SPI | |
GDEY0213Z98 | 2.13” | SSD1680 | BWR | 2 | 250×122 | 48.55×23.70 | 14 | 0℃~40℃ | SPI | |
GDEW0213T5D | 2.13” | UC8151D | BW | 4 | 212×104 | 48.55×23.71 | 3 | 0℃~50℃ | √ | SPI |
GDEW0213T5D-FL01(With Frontlight) | 2.13” | UC8151D | BW | 4 | 212×104 | 48.55×23.71 | 3 | 0℃~50℃ | √ | SPI |
GDEW026T0D | 2.6” | UC8151D | BW | 4 | 296×152 | 60.09×30.70 | 3 | 0℃~50℃ | √ | SPI |
GDEW027W3 | 2.7” | EK79652 | BW | 4 | 264×176 | 57.29×38.19 | 3 | 0℃~50℃ | √ | SPI |
GDEW027W3-T(With Touch Panel) | 2.7” | EK79652 | BW | 4 | 264×176 | 57.29×38.19 | 3 | 0℃~50℃ | √ | SPI |
GDEH029Z13 | 2.9” | UC8151D | BWR | 2 | 296×128 | 66.90×29.06 | 15 | 0℃~40℃ | SPI | |
GDEW029I6FD(FLEXIBLE) | 2.9” | UC8151D | BW | 4 | 296×128 | 66.90×29.06 | 3 | 0℃~50℃ | √ | SPI |
GDEW029T5D | 2.9” | UC8151D | BW | 4 | 296×128 | 66.90×29.06 | 3 | 0℃~50℃ | √ | SPI |
GDEW029T5D-FL02(With Frontlight) | 2.9” | UC8151D | BW | 4 | 296×128 | 66.90×29.06 | 3 | 0℃~50℃ | √ | SPI |
GDEW0371W7 | 3.71” | UC8171 | BW | 4 | 416×240 | 81.54×47.04 | 4 | 0℃~50℃ | SPI |
SIZE ABOVE 4.2”
PART NUMBER | SIZE | IC | GREYSCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | INTERFACE |
GDEW042C37 | 4.2” | UC8176 | 2 | 400×300 | 84.80×63.60 | 28 | 0℃~40℃ | SPI |
GDEW042T2 | 4.2” | UC8176 | 4 | 400×300 | 84.80×63.60 | 3 | 0℃~50℃ | SPI |
GDEH042Z21 | 4.2” | UC8276 | 2 | 400×300 | 84.80×63.60 | 15 | 0℃~40℃ | SPI |
GDEW0583C64 | 5.83” | UC8159 | 2 | 600×448 | 118.80×88.26 | 25 | 0℃~40℃ | SPI |
GDEW0583T8 | 5.83” | UC8179 | 2 | 648×480 | 119.23×88.32 | 4 | 0℃~50℃ | SPI |
GDEW0583Z83 | 5.83” | UC8179 | 2 | 648×480 | 119.23×88.32 | 12 | 0℃~40℃ | SPI |
GDEY075Z08 | 7.5” | UC8179 | 2 | 800×480 | 163.20×97.92 | 12 | 0℃~40℃ | SPI |
GDEY075T7 | 7.5” | UC8179 | 4 | 800×480 | 163.20×97.72 | 3 | 0℃~50℃ | SPI |
