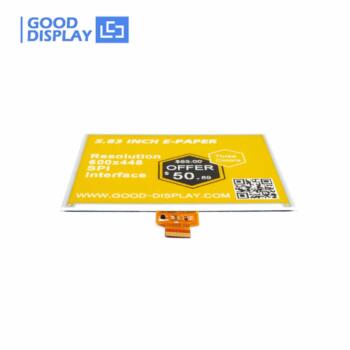

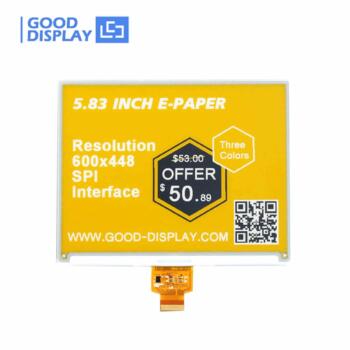

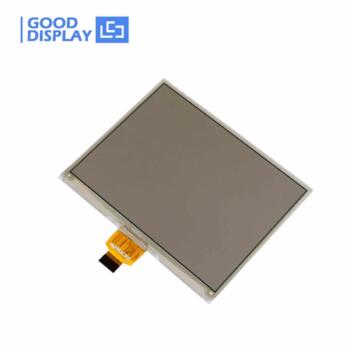

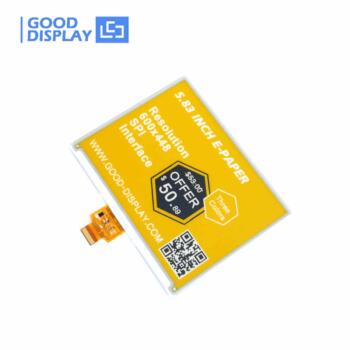

Low Power 5.83 inch tri-color Yellow E Ink screen

by GoodisplayEpaper 0 orders


$46.00

Model Name:GDEW0583C64
SIZE:5.83 inch
IC:UC8159
RESOLUTION:600×448
OUTLINE SIZE(mm):125.40×99.50×1.18
ACTIVE SIZE(mm):118.80×88.26
PIXEL PITCH(mm):0.198×0.197
OPERATING TEMP.:0℃~40℃
STORAGE TEMP.:-25℃~60℃

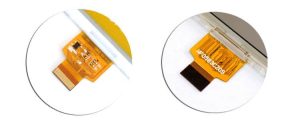

CONNECTOR:24 Pin FPC
COLOR:Black, White and Yellow
INTERFACE:SPI
FULL REFRESH(s):25
POWER CONSUMPTION OF THE REFRESH(mW):26.4
STANDBY POWER CONSUMPTION (mW):0.0165

Share
Tweet
Share
Reddit
Vote
Email

36 in stock

SKU: GDEW0583C64 Categories: , Tags: , , , , , ,

Description

This is a 5.83 inch eink ePaper display with 600×448 resolution, SPI interface, capable of displaying images in black, white and yellow. Due to the bi-stable, the image once updated can stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products.

Advantages of e-Paper Display
  • Paper-like readability.
  • Sunlight and non-uniform light visibility.
  • High reflectivity, high contrast & resolution.
  • Viewing angle ~180 degree.
  • Highly flexible.
  • Ultra Low Power Consumption.
  • Long-term Bi-stable Image content preserved without power.
  • Prolonged battery life.

FLEXIBLE PURCHASE OPTION

*If you want to add DESPI-C02 individually into your CART, PLEASE CLICK THE PICTURE BELOW:

*If you want to add DESPI-C03 individually into your CART, PLEASE CLICK THE PICTURE BELOW:



FEATURE

  • Black, white and yellow, more aesthetic than monochrome series
  • Versatile, portrait or landscape format
  • Bistable. (Image can stay on the display even when the power is off)
  • I2C Signal Master Interface to read external temperature sensor
  • Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

WATCH THE VIDEO

DRAWING



RELATED INFORMATION FOR DOWNLOADING

GDEW0583C64 Specification

IC Driver UC8159 Datasheet

GDEW0583C64 Bitmap Conversion



USING IMAGE TO ARRAY TO PROCESS YOUR IMAGE FOR THE EPAPER DISPLAY



SELECTION GUIDE

PART NUMBERSIZEICCOLORGREYSCALERESOLUTIONACTIVE SIZE(mm)FULL REFRESH TIME (S)OPERATING TEMP.PARTIAL REFRESHINTERFACE
GDEW0102T41.02”UC8175BW2128×8021.76×14.0030℃~50℃√SPI
GDEW0102I3F（FLEXIBLE）1.02”UC8175BW2128×8021.76×14.0030℃~50℃√SPI
GDEW0154M091.54”JD79653BW2200×20027.60×27.600.820℃~50℃√SPI
GDEW0154T8D1.54”UC8151DBW4152×15227.51×27.5130℃~50℃√SPI
GDEH0154Z901.54”SSD1681BWR2200×20027.00×27.00150℃~40℃SPI
GDEW0213I5FD（FLEXIBLE）2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEM0213B742.13”SSD1680BW4250×12248.55×23.7030℃~50℃SPI
GDEY0213Z982.13”SSD1680BWR2250×12248.55×23.70140℃~40℃SPI
GDEW0213T5D2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEW0213T5D-FL01(With Frontlight)2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEW026T0D2.6”UC8151DBW4296×15260.09×30.7030℃~50℃√SPI
GDEW027W32.7”EK79652BW4264×17657.29×38.1930℃~50℃√SPI
GDEW027W3-T(With Touch Panel)2.7”EK79652BW4264×17657.29×38.1930℃~50℃√SPI
GDEH029Z132.9”UC8151DBWR2296×12866.90×29.06150℃~40℃SPI
GDEW029I6FD（FLEXIBLE）2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW029T5D2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW029T5D-FL02(With Frontlight)2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW0371W73.71”UC8171BW4416×24081.54×47.0440℃~50℃SPI

SIZE ABOVE 4.2”

PART NUMBERSIZEICGREYSCALERESOLUTIONACTIVE SIZE(mm)FULL REFRESH TIME (S)OPERATING TEMP.INTERFACE
GDEW042C374.2”UC81762400×30084.80×63.60280℃~40℃SPI

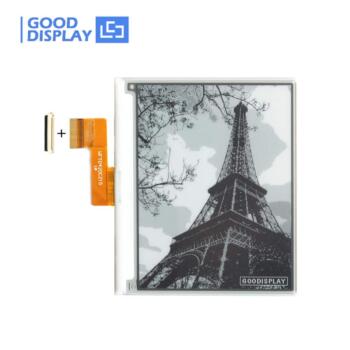

GDEW042T24.2”UC81764400×30084.80×63.6030℃~50℃SPI

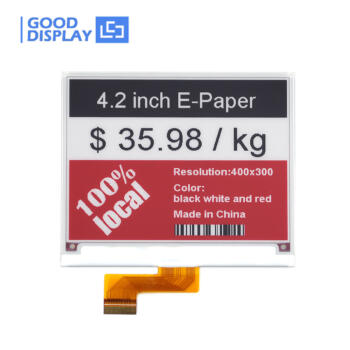

GDEH042Z21 4.2”UC82762400×30084.80×63.60150℃~40℃SPI
GDEW0583C645.83”UC81592600×448118.80×88.26250℃~40℃SPI
GDEW0583T85.83”UC81792648×480119.23×88.3240℃~50℃SPI

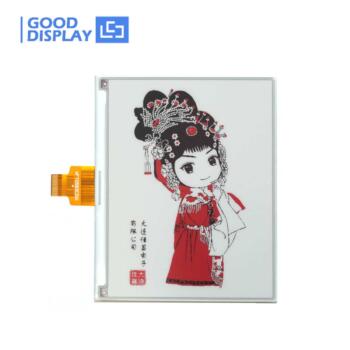

GDEW0583Z835.83”UC81792648×480119.23×88.32120℃~40℃SPI
GDEY075Z087.5”UC81792800×480163.20×97.92120℃~40℃SPI
GDEY075T77.5”UC81794800×480163.20×97.7230℃~50℃SPI
