7.5 inch ePaper 4 Grayscale Good Display

by GoodisplayEpaper 2 orders


$54.00

Model Name:GDEY075T7
SIZE:7.5 inch
IC:UC8179
RESOLUTION:800×480
OUTLINE SIZE(mm):170.2×111.2×1.25
ACTIVE SIZE(mm):163.2×97.72
PIXEL PITCH(mm):0.204×0.204
OPERATING TEMP.:0℃~50℃
STORAGE TEMP.:-25℃~70℃

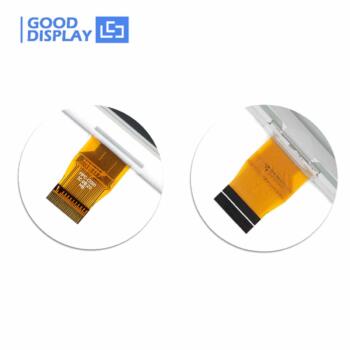

CONNECTOR:24 Pin FPC
INTERFACE:SPI
FULL REFRESH(s):3
POWER CONSUMPTION OF THE REFRESH(mW):26.4
STANDBY POWER CONSUMPTION (mW):0.0165

Share
Tweet
Share
Reddit
Vote
0 Shares

33 in stock

Good e-Reader Protection Plan

Extend your e-reader warranty for two years. Good e-Reader will coordinate the repairs with the manufacturers if your device is damaged during this time.

SKU: GDEY075T7 Categories: , Tags: , , , , , , , , , , , ,

Description

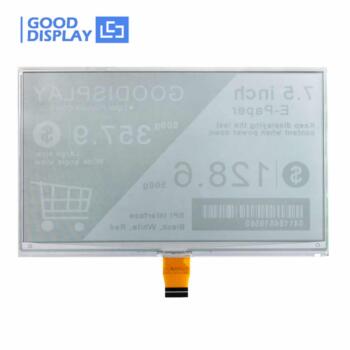

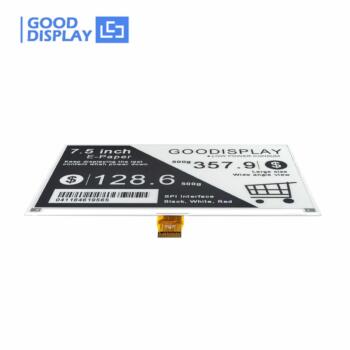

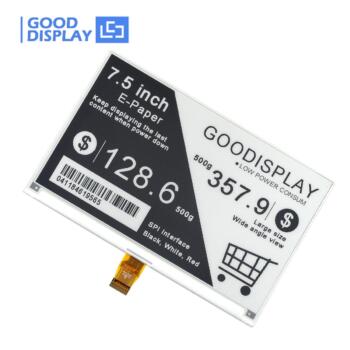

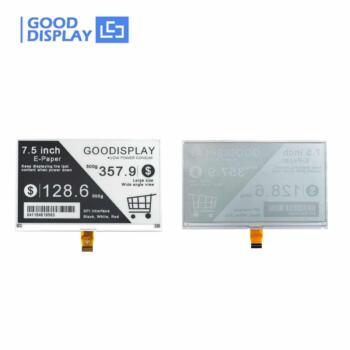

HD resolution 7.5 inch monochrome eink ePaper display with 800×480 pixels, SPI interface, supporting four grayscale displaying. Due to the trait of bi-stable, the image once updated can stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products.

WHAT MERITS DO EPAPER POSSESS?
1. Near 180 degree viewing angle
2. Ultra low power usage
3. Paper-like readability
4. Zero glare
5. Easily readable even in direct sunlight

E-Paper is an ambient-light-reflecting display technology. lt drives ink droplets by electricity to make natural, clear images on the screen, illuminated by lighting the environment rather than a backlight. This also means that it uses almost no power!

FLEXIBLE PURCHASE OPTION

*If you want to add DESPI-C02 individually into your CART, PLEASE CLICK THE PICTURE BELOW:

*If you want to add DESPI-C03 individually into your CART, PLEASE CLICK THE PICTURE BELOW:



FEATURE

  • Black and white, paper-like aesthetic
  • Supporting four grayscale
  • Versatile, portrait or landscape format
  • Bistable. (Image can stay on the display even when the power is off)
  • I2C Signal Master Interface to read external temperature sensor
  • Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

WATCH THE VIDEO

RELATED INFORMATION FOR DOWNLOADING

GDEW075T7 Specification

GDEW075T7 Arduino Sample Code

GDEW075T7 STM32 Sample Code

GDEW075T7 ESP32 Sample Code

GDEW075T7 Bitmap Conversion

GDEW075T7 Raspberry Pi Sample Code



USING IMAGE TO ARRAY TO PROCESS YOUR IMAGE FOR THE EPAPER DISPLAY



SELECTION GUIDE

PART NUMBER SIZE IC COLOR GREYSCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH INTERFACE
GDEW0102T4 1.02” UC8175 BW 2 128×80 21.76×14.00 3 0℃~50℃ √ SPI
GDEW0102I3F（FLEXIBLE） 1.02” UC8175 BW 2 128×80 21.76×14.00 3 0℃~50℃ √ SPI
GDEW0154M09 1.54” JD79653 BW 2 200×200 27.60×27.60 0.82 0℃~50℃ √ SPI
GDEW0154T8D 1.54” UC8151D BW 4 152×152 27.51×27.51 3 0℃~50℃ √ SPI
GDEH0154Z90 1.54” SSD1681 BWR 2 200×200 27.00×27.00 15 0℃~40℃ SPI
GDEW0213I5FD（FLEXIBLE） 2.13” UC8151D BW 4 212×104 48.55×23.71 3 0℃~50℃ √ SPI
GDEM0213B74 2.13” SSD1680 BW 4 250×122 48.55×23.70 3 0℃~50℃ SPI
GDEY0213Z98 2.13” SSD1680 BWR 2 250×122 48.55×23.70 14 0℃~40℃ SPI
GDEW0213T5D 2.13” UC8151D BW 4 212×104 48.55×23.71 3 0℃~50℃ √ SPI
GDEW0213T5D-FL01(With Frontlight) 2.13” UC8151D BW 4 212×104 48.55×23.71 3 0℃~50℃ √ SPI
GDEW026T0D 2.6” UC8151D BW 4 296×152 60.09×30.70 3 0℃~50℃ √ SPI
GDEW027W3 2.7” EK79652 BW 4 264×176 57.29×38.19 3 0℃~50℃ √ SPI
GDEW027W3-T(With Touch Panel) 2.7” EK79652 BW 4 264×176 57.29×38.19 3 0℃~50℃ √ SPI
GDEH029Z13 2.9” UC8151D BWR 2 296×128 66.90×29.06 15 0℃~40℃ SPI
GDEW029I6FD（FLEXIBLE） 2.9” UC8151D BW 4 296×128 66.90×29.06 3 0℃~50℃ √ SPI
GDEW029T5D 2.9” UC8151D BW 4 296×128 66.90×29.06 3 0℃~50℃ √ SPI
GDEW029T5D-FL02(With Frontlight) 2.9” UC8151D BW 4 296×128 66.90×29.06 3 0℃~50℃ √ SPI
GDEW0371W7 3.71” UC8171 BW 4 416×240 81.54×47.04 4 0℃~50℃ SPI

SIZE ABOVE 4.2”

PART NUMBER SIZE IC GREYSCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. INTERFACE
GDEW042C37 4.2” UC8176 2 400×300 84.80×63.60 28 0℃~40℃ SPI
GDEW042T2 4.2” UC8176 4 400×300 84.80×63.60 3 0℃~50℃ SPI
GDEH042Z21  4.2” UC8276 2 400×300 84.80×63.60 15 0℃~40℃ SPI
GDEW0583C64 5.83” UC8159 2 600×448 118.80×88.26 25 0℃~40℃ SPI
GDEW0583T8 5.83” UC8179 2 648×480 119.23×88.32 4 0℃~50℃ SPI
GDEW0583Z83 5.83” UC8179 2 648×480 119.23×88.32 12 0℃~40℃ SPI
GDEY075Z08 7.5” UC8179 2 800×480 163.20×97.92 12 0℃~40℃ SPI
GDEY075T7 7.5” UC8179 4 800×480 163.20×97.72 3 0℃~50℃ SPI
