1.02” ePaper Grayscale Partial Update DIY electronics Zigbee

by GoodisplayEpaper 0 orders


$9.00

Part Number: GDEW0102T4
Type: Dot Matrix
Size: 1.02 inch
IC: UC8175
RESOLUTION: 128×80
OUTLINE SIZE(mm): 32.57×18.6×0.98
ACTIVE SIZE(mm): 21.76×14
PIXEL PITCH(mm): 0.175×0.17
OPERATING TEMP.: 0℃~50℃
STORAGE TEMP.: -25℃~70℃
CONNECTOR: 24 Pin FPC
MAX GRAYSCALE: 2
COLOR: Black,White
INTERFACE: SPI
FULL REFRESH(s): 3
PARTIAL REFRESH TIME(s): 0.3
Share
Tweet
Share
Reddit
Vote
0 Shares

125 in stock

Good e-Reader Protection Plan

Extend your e-reader warranty for two years. Good e-Reader will coordinate the repairs with the manufacturers if your device is damaged during this time.

SKU: GDEW0102T4 Category: Tags: , , , , ,

Description

This is a 1.02 inch eink ePaper display with 128×80 resolution, SPI interface and capable of displaying images in black and white. Due to the bi-stable, the image once updated can stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products.

FLEXIBLE PURCHASE OPTION

*If you also desire our Flexible ePaper Display-1.02 inch ePaper Display flexible GDEW0102I3F, PLEASE CLICK THE PICTURE BELOW:

           102 inch mini flexible e ink display small epaper screen module buy gdew0102i3f

*If you want to add DESPI-C102 ESPECIALLY for the 1.02inch EPDs, PLEASE CLICK THE PICTURE BELOW:

FEATURE

  • Versatile, portrait or landscape format
  • Supporting partial refresh, refresh rate 0.3s/frame
  • Bistable. (Image can stay on the display even when the power is off)
  • I2C Signal Master Interface to read external temperature sensor
  • Development platforms available STM32 / Arduino / ESP8266

WATCH THE VIDEO

RELATED INFORMATION FOR DOWNLOADING

GDEW0102T4 Specification

IC Driver UC8175

GDEW0102T4 Bitmap Conversion

GDEW0102T4 STM32 Sample Code

GDEW0102T4 Arduino Sample Code

GDEW0102T4 Raspberry Pi Pico Sample Code

SUCCESSFUL APPLICATION BY OUR CLIENT

Product Name:  Plant Watering Sensor EFEKTA eFlower (Zigbee)

                          Mini Digital Thermometer & Hygrometer (Zigbee)

Plant Watering Sensor EFEKTA eFlower (Zigbee) 7

What is it?

This is a compact wireless soil moisture sensor with 1.02-inch e-paper display (GDEW0102T4), supports working in Zigbee networks. Supported inZ2M, ZHA. The device has an industrial look, at least, i wanted to achieve this. The sensor has very good energy efficiency. Powered by CC2530 chip (Zigbee). The device is shipped fully wired with open source software preinstalled. The device can be purchased with or without a case.

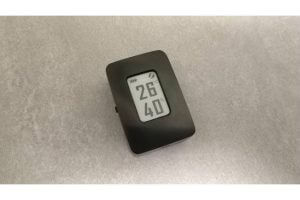

Mini Digital Thermometer & Hygrometer (Zigbee) 5

What is it?

It is a miniature temperature and humidity sensor with a small e-ink display. The sensor has an industrial look, at least I wanted to achieve this.

Powered by CC2530 chip (Zigbee). The device is shipped fully wired with open source software preinstalled. The device can be purchased with or without a case.
