Ultra-thin Flexible E-paper E Ink screen, Fast Refresh

Name: Ultra-thin Flexible E-paper E Ink screen, Fast Refresh
Brand: GDEW029I6FD
SKU: GDEW029I6FD
Price: 15.70 USD
Availability: InStock
Rating: 5 (1 reviews)

by GoodisplayEpaper

$15.70

Part Number: GDEW029I6FD
Type: Dot Matrix
Size: 2.9 inch
IC: UC8151D
RESOLUTION: 296×128
OUTLINE SIZE(mm): 79×36.7×0.34
ACTIVE SIZE(mm): 66.9×29.06
PIXEL PITCH(mm): 0.227×0.226
OPERATING TEMP.: 0℃~50℃
STORAGE TEMP.: -25℃~70℃

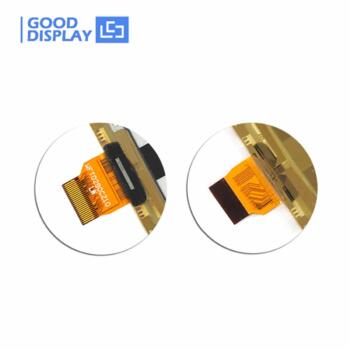

CONNECTOR: 24 Pin FPC
MAX GRAYSCALE: 4
INTERFACE: SPI
FULL REFRESH(s): 3
PARTIAL REFRESH TIME(s): 0.3
POWER CONSUMPTION OF THE REFRESH(mW): 26.4
STANDBY POWER CONSUMPTION (mW): 0.0165
Share
Tweet
Share
Reddit
Vote
Email

13 in stock

SKU: GDEW029I6FD Categories: Digital Signage, E-Paper Displays Tags: 2.9inch, 4 grayscale, eink display, electronic paper, esp32, flexible, four grayscale, GDEW029I6F, GDEW029I6FD, goodisplay, logistic label, low power, monochrome, partial refresh, STM32, UC8151, zero glare Item sold: 0

Report abuse

Description

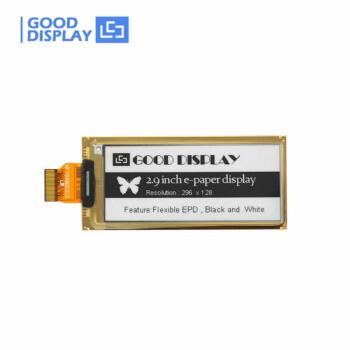

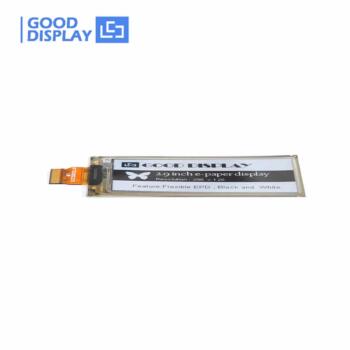

Ultra-thin substrate 2.9inch flexible E Ink ePaper display with 296×128 resolution, four grayscale, SPI interface and capable of displaying images in black and white. Due to the bi-stable, the image once updated can stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products.

FLEXIBLE PURCHASE OPTION

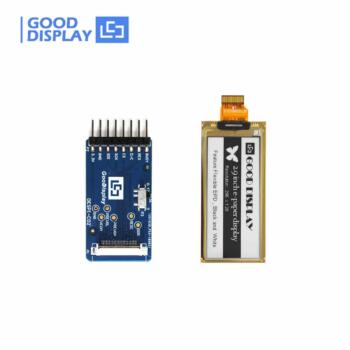

*If you want to purchase the display panel with a DESPI-C02 adaptor board, CLICK THE PICTURE BELOW:

*If you want to add DESPI-C02 individually into your CART, PLEASE CLICK THE PICTURE BELOW:

*ESP32 development kit

demo board E-INK screen driver board support WIFI and BLE, ESP32-02

FEATURE

Supporting Four Grayscale
Black and white monochrome is easy to read
Versatile, portrait or landscape format
Supporting partial refresh, refresh rate 0.3s/frame

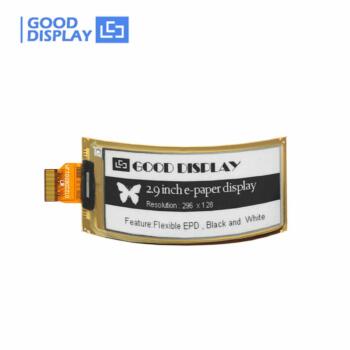

Flexible and bendable
Bistable. (Image can stay on the display even when the power is off)
I²C Signal Master Interface to read external temperature sensor
Development platforms available STM32 / Arduino / Raspberry Pi / ESP8266 / ESP32

WATCH THE VIDEO

RELATED INFORMATION FOR DOWNLOADING

GDEW029I6FD Specification

GDEW029I6FD STM32 Sample Code

IC Driver UC8151D

IC UC8151C to IC UC8151D Instructions

YOU CAN ALSO VISIT OUR GITHUB

USING IMAGE TO ARRAY TO PROCESS YOUR IMAGE FOR THE EPAPER DISPLAY

SELECTION GUIDE

PART NUMBER	SIZE	IC	COLOR	GREYSCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	INTERFACE
GDEW0102T4	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0102I3F（FLEXIBLE）	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0154M09	1.54”	JD79653	BW	2	200×200	27.60×27.60	0.82	0℃~50℃	√	SPI
GDEW0154T8D	1.54”	UC8151D	BW	4	152×152	27.51×27.51	3	0℃~50℃	√	SPI
GDEH0154Z90	1.54”	SSD1681	BWR	2	200×200	27.00×27.00	15	0℃~40℃		SPI
GDEW0213I5FD（FLEXIBLE）	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEM0213B74	2.13”	SSD1680	BW	4	250×122	48.55×23.70	3	0℃~50℃		SPI
GDEY0213Z98	2.13”	SSD1680	BWR	2	250×122	48.55×23.70	14	0℃~40℃		SPI
GDEW0213T5D	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW0213T5D-FL01(With Frontlight)	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW026T0D	2.6”	UC8151D	BW	4	296×152	60.09×30.70	3	0℃~50℃	√	SPI
GDEW027W3	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEW027W3-T(With Touch Panel)	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEH029Z13	2.9”	UC8151D	BWR	2	296×128	66.90×29.06	15	0℃~40℃		SPI
GDEW029I6FD（FLEXIBLE）	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D-FL02(With Frontlight)	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW0371W7	3.71”	UC8171	BW	4	416×240	81.54×47.04	4	0℃~50℃		SPI

SIZE ABOVE 4.2”

PART NUMBER	SIZE	IC	GREYSCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	INTERFACE
GDEW042C37	4.2”	UC8176	2	400×300	84.80×63.60	28	0℃~40℃	SPI
GDEW042T2	4.2”	UC8176	4	400×300	84.80×63.60	3	0℃~50℃	SPI
GDEH042Z21	4.2”	UC8276	2	400×300	84.80×63.60	15	0℃~40℃	SPI
GDEW0583C64	5.83”	UC8159	2	600×448	118.80×88.26	25	0℃~40℃	SPI
GDEW0583T8	5.83”	UC8179	2	648×480	119.23×88.32	4	0℃~50℃	SPI
GDEW0583Z83	5.83”	UC8179	2	648×480	119.23×88.32	12	0℃~40℃	SPI
GDEY075Z08	7.5”	UC8179	2	800×480	163.20×97.92	12	0℃~40℃	SPI
GDEY075T7	7.5”	UC8179	4	800×480	163.20×97.72	3	0℃~50℃	SPI

PLEASE FEEL FREE TO ASK US ANY QUESTIONS, JUST LEAVING A MESSAGE OR SENDING US AN EMAIL :freddie@good-display.com

Goodisplay is always here for you!
