Low Power 2.13 inch Grayscale E Ink E-paper

Name: Low Power 2.13 inch Grayscale E Ink E-paper
SKU: GDEW0213T5D-C02
Price: 17 USD
Availability: InStock

by GoodisplayEpaper 5 orders

$17.00

Part Number: GDEW0213T5D
Type: Dot Matrix
Size: 2.13 inch
IC: UC8151D
RESOLUTION: 212×104
OUTLINE SIZE(mm): 59.2×29.2×0.98
ACTIVE SIZE(mm): 48.55×23.71
PIXEL PITCH(mm): 0.229×0.228
OPERATING TEMP.: 0℃~50℃
STORAGE TEMP.: -25℃~70℃
CONNECTOR: 24 Pin FPC
MAX GRAYSCALE: 4
INTERFACE: SPI
FULL REFRESH(s): 3
PARTIAL REFRESH TIME(s): 0.3
POWER CONSUMPTION OF THE REFRESH(mW): 26.4
STANDBY POWER CONSUMPTION (mW): 0.0165

Share
Tweet
Share
Reddit
Vote
0 Shares

105 in stock

SKU: GDEW0213T5D-C02 Categories: Digital Signage, E-Paper Displays Tags: 2.13'', 2.13inch, 2.13inch epaper, air quality monitor, eink, epaperdisplay, ESL, four grayscale, front light, goodisplay, monochrome, partial update, price ticker, stock ticker

Report abuse

Description

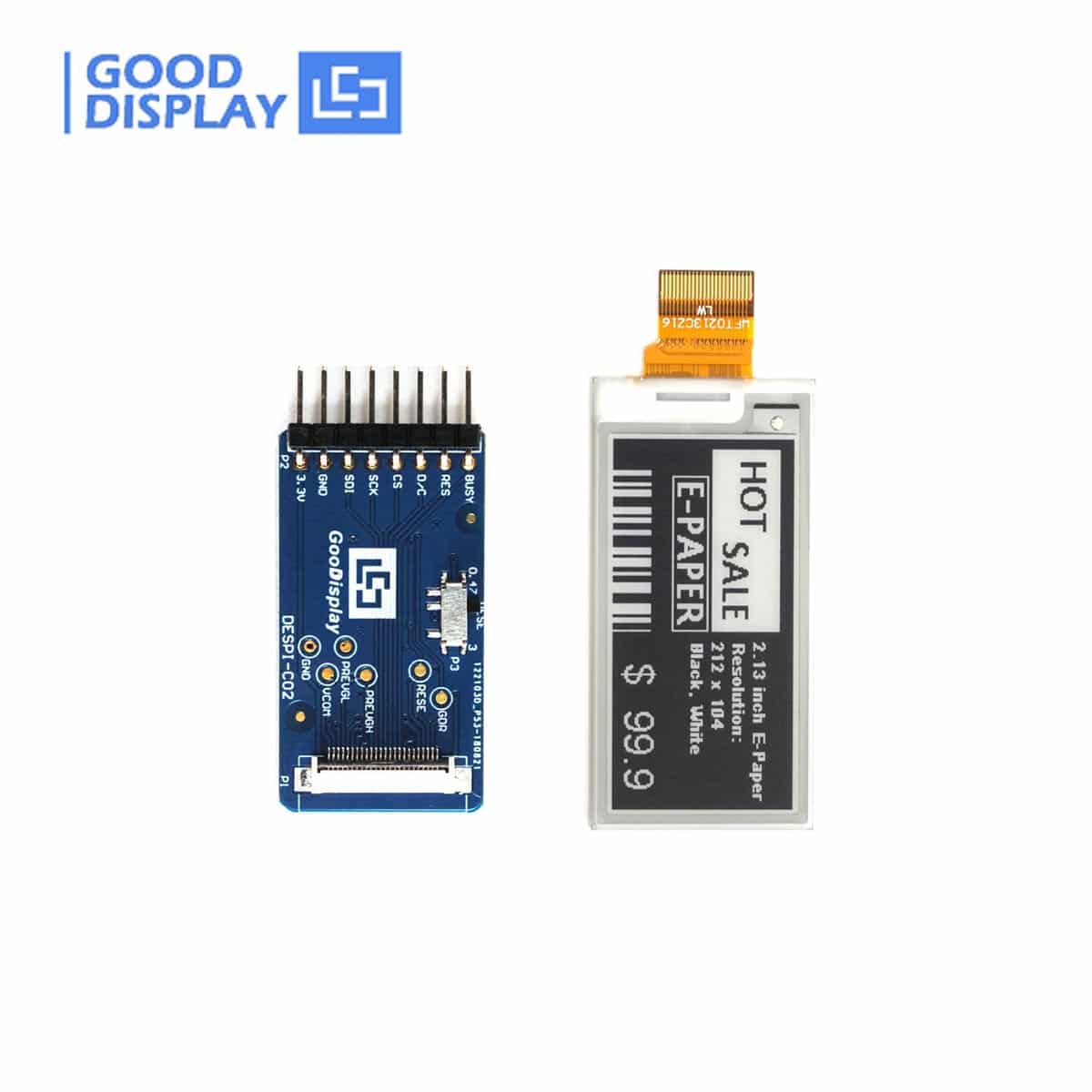

2.13inch eink ePaper four grayscale display with 212×104 resolution, SPI interfaced. Due to the bi-stable, the image once updated can looooooong stay on the display even when power is completely disconnected!!! The image is also high contrast and readable under sun just like printed paper. You can make you own smart gadget like price ticker, btcticker, nameplate, smart wearables and so many other things we cannot even imagine!!! Thrill us with your creativity! Good Display can also offer you front light and touch screen for this display.
Just contact us TODAY.

FLEXIBLE PURCHASE OPTION

*We could also provide with Frontlight for the GDEW0213T5D, CLICK TO CHECK GDEW0213T5D-FL01

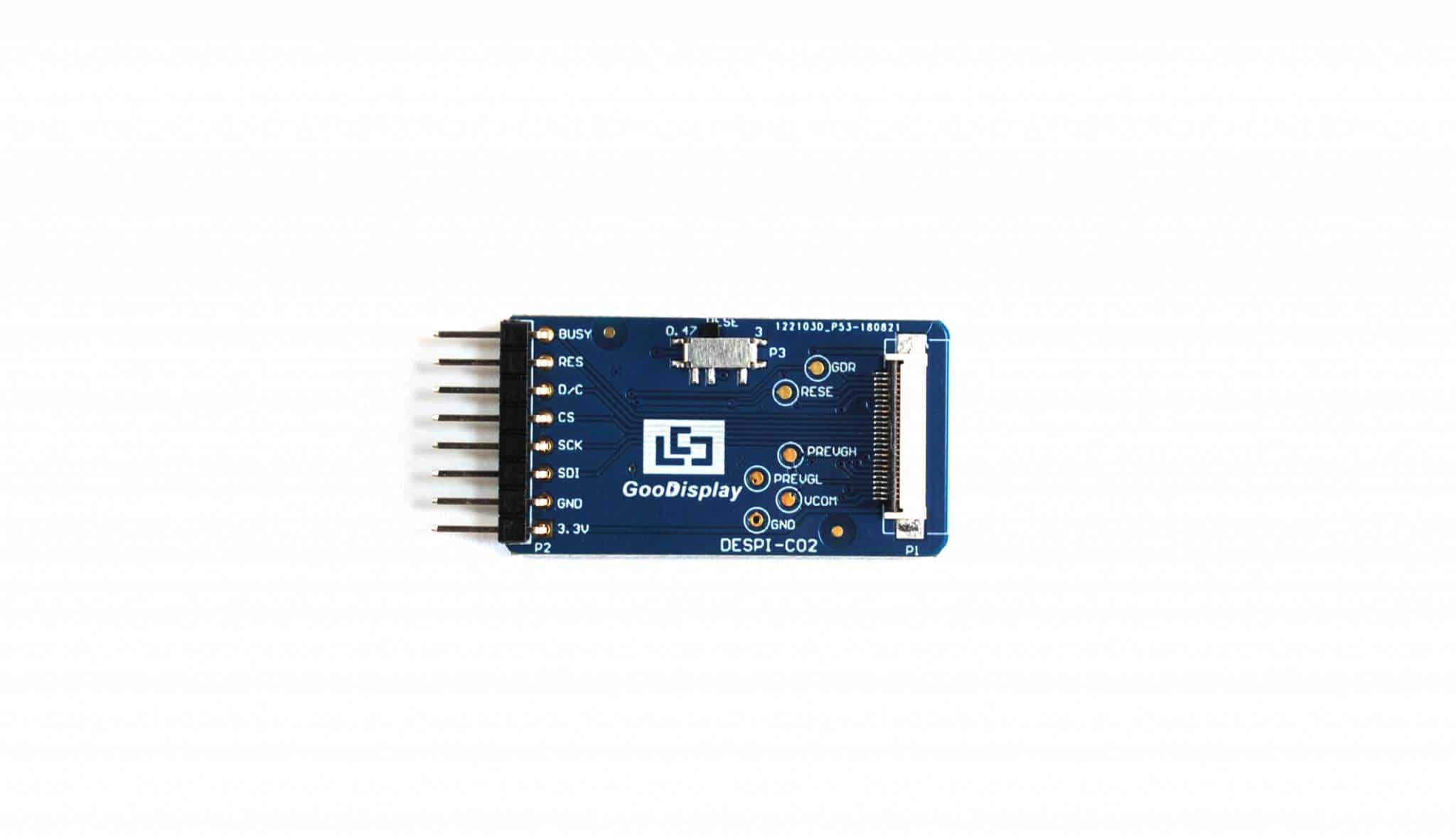

*If you want to add DESPI-C02 individually into your CART, PLEASE CLICK THE PICTURE BELOW:

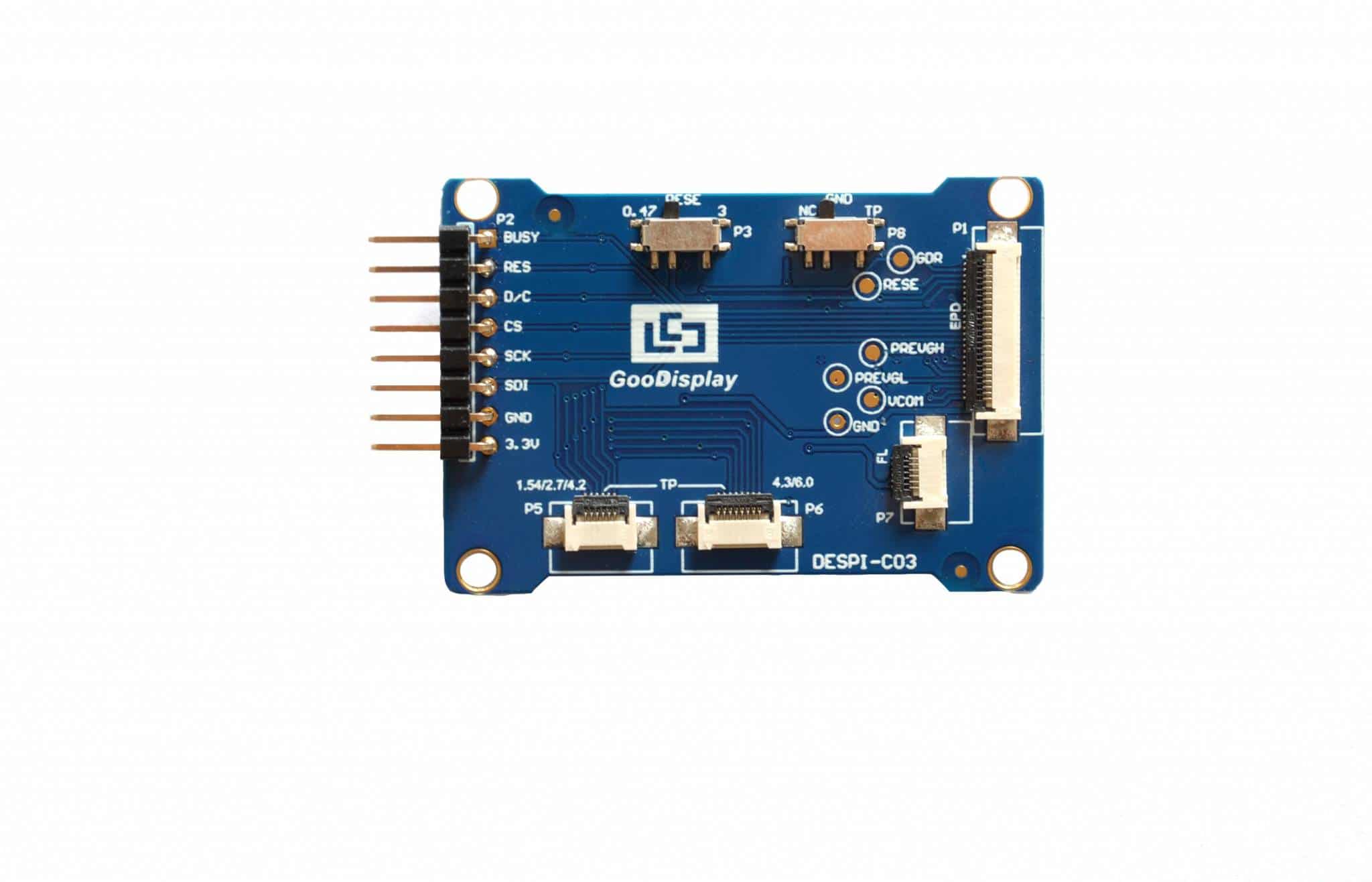

*If you want to add DESPI-C03 individually into your CART, PLEASE CLICK THE PICTURE BELOW:

*ESP32 development kit

demo board e ink screen driver board support wifi and ble esp32 02 — demo board E-INK screen driver board support WIFI and BLE, ESP32-02

FEATURE

Supporting Four Grayscale
Black and white monochrome is easy to read
Versatile, portrait or landscape format
Supporting partial refresh, the refresh rate is 0.3s/frame
Bistable. (Image can stay on the display even when the power is off)
I²C Signal Master Interface to read external temperature sensor

WATCH THE VIDEO

RELATED INFORMATION FOR DOWNLOADING

GDEW0213T5D Specification

GDEW0213T5D STM32 Sample Code

GDEW0213T5D Arduino Sample Code

GDEW0213T5D ESP8266 Sample Code

GDEW0213T5D ESP32 Sample Code

GDEW0213T5D Raspberry Pi Pico Sample Code

USING IMAGE TO ARRAY TO PROCESS YOUR IMAGE FOR THE EPAPER DISPLAY

SELECTION GUIDE

PART NUMBER	SIZE	IC	COLOR	GREYSCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	INTERFACE
GDEW0102T4	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0102I3F（FLEXIBLE）	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0154M09	1.54”	JD79653	BW	2	200×200	27.60×27.60	0.82	0℃~50℃	√	SPI
GDEW0154T8D	1.54”	UC8151D	BW	4	152×152	27.51×27.51	3	0℃~50℃	√	SPI
GDEH0154Z90	1.54”	SSD1681	BWR	2	200×200	27.00×27.00	15	0℃~40℃		SPI
GDEW0213I5FD（FLEXIBLE）	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEM0213B74	2.13”	SSD1680	BW	4	250×122	48.55×23.70	3	0℃~50℃		SPI
GDEY0213Z98	2.13”	SSD1680	BWR	2	250×122	48.55×23.70	14	0℃~40℃		SPI
GDEW0213T5D	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW0213T5D-FL01(With Frontlight)	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW026T0D	2.6”	UC8151D	BW	4	296×152	60.09×30.70	3	0℃~50℃	√	SPI
GDEW027W3	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEW027W3-T(With Touch Panel)	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEH029Z13	2.9”	UC8151D	BWR	2	296×128	66.90×29.06	15	0℃~40℃		SPI
GDEW029I6FD（FLEXIBLE）	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D-FL02(With Frontlight)	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW0371W7	3.71”	UC8171	BW	4	416×240	81.54×47.04	4	0℃~50℃		SPI
