Good e-Reader

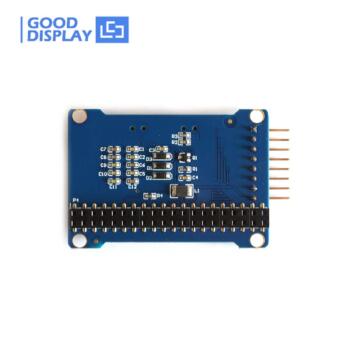

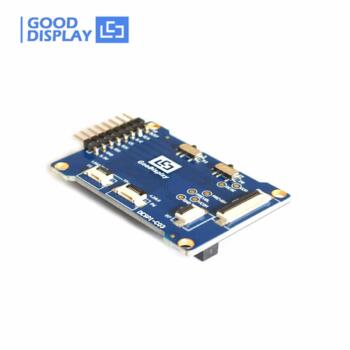

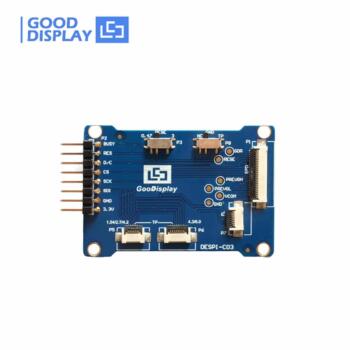

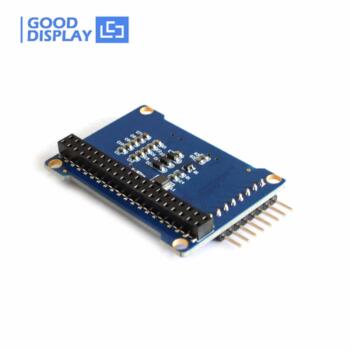

E-Paper HAT Adapter Raspberry

by GoodisplayEpaper 1 orders


Part Number：DESPI-C03
Platform：STM32, Arduino, Raspberry Pi and etc
Function:Connection E-paper Display with DESPI-M02
Outside Dimension:52x36mm
Interface:USB Interface
Power Input:DC3.3V
Feature:Fully and Partial refresh
Operating Temp:-20~70℃
Share
Tweet
Share
Reddit
Vote
0 Shares
SKU: DESPI-C03 Category: Tags: , , , , , , , ,

Description

INTRODUCTION

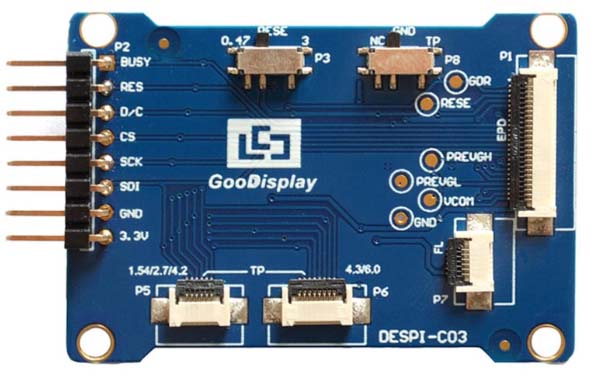

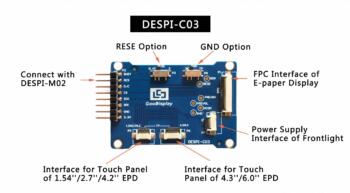

This HAT adaptor board DESPI-C03 helps users to learn to use the ePaper Display easier and has an interface for touch panel and a power supply for frontlight. It supports STM32 , Arduino , Raspberry Pi , and other platforms. It also has several different combinations.

RESE To 0.47 Ω：
1.1.54 inch E-Paper Display: GDEW0154T8D,GDEH0154Z90,GDEW0154M09
2.2.13 inch E-Paper Display:  GDEW0213T5D,GDEW0213I5FD
3.2.6 inch E-Paper Display: GDEW026T0D
4.2.7 inch E-Paper Display:  GDEW027W3,GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5D,GDEH029Z13,GDEW029I6FD
6.3.71 inch E-Paper Display: GDEW0371W7
7.4.2 inch E-Paper Display:  GDEW042T2,GDEH042Z21,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z83,GDEW0583C64
9.7.5 inch E-Paper Display:  GDEW075Z08

RESE To 3 Ω：
1.1.54 inch E-Paper Display:GDEH0154D67
2.2.13 inch E-Paper Display: GDEM0213B74
3.5.83 inch E-Paper Display: GDEW0583T8
4.7.5 inch E-Paper Display: GDEW075T7

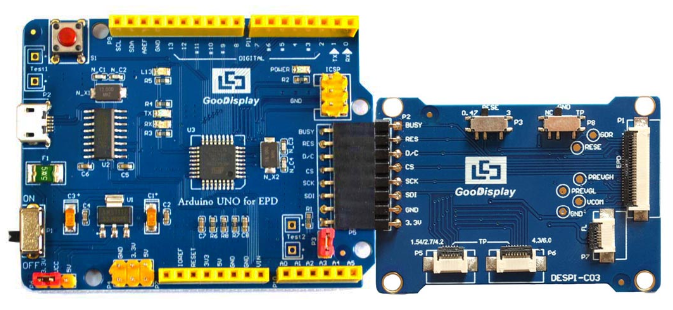

Combination Of Raspberry Pi Development Platform Adapter Board And Other Motherboards:

+=

DESPI-C03                                                             STM32-M02                                                       DESPI-V3.0

Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch)

PARAMETERS

Part Number:DESPI-V3.0

Platform:STM32

Function:Drive E-paper Display

Outside Dimension:90mmx60mm (DESPI-M02)

52mmx36mm (DESPI-C03)

Power Interface:USB Interface

Main Function :EPD driving, touch panel driving and frontlight driving.

Sample Code :Available (please contact us)

Additional Function :USB to serial port, indicator light, keys, current detection and etc.

Operating Temp:-20~70℃

Recommended Tool:Keil4



+=

DESPI-C03                                                     Arduino UNO for EPD                                                  DEArduino-03

Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch)

PARAMETERS

Part Number:DEArduino(C03)

MCU:Arduino

Function:Drive E-paper Display

Outside Dimension:70mm x 54mm (Arduino UNO for EPD)

52mm x 36mm (DESPI-C03)

Power Interface:USB Interface

Sample Code :Available (please contact us)

Operating Temp:-20~70℃

Main Function: 1.Learn to drive e-paper display

2.Test and evaluate e-paper display

3.For secondary development.

Additional Function:USB to serial port, indicator light, keys, current detection and etc.



+=

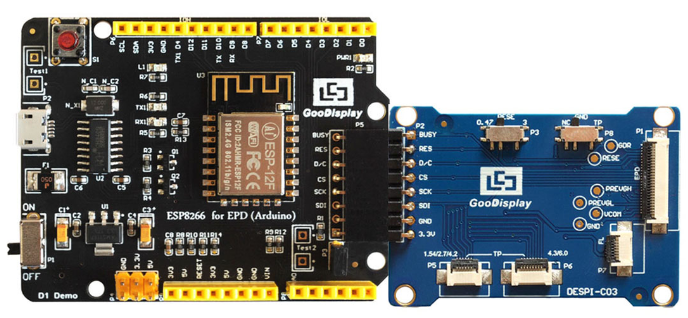

DESPI-C03                                            ESP8266 for EPD (Arduino)                                         ESP8266-03

Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch)

PARAMETERS

Part Number:ESP8266(C03)

MCU:Arduino

Function:Drive E-paper Display

Outside Dimension:70mmx54mm (ESP8266 for EPD)

52mm x 36mm (DESPI-C03)

Power Interface:USB Interface

Main Function:Driving e-paper display

Sample Code :Available (please contact us)

Operating Temp:-20~70℃

Additional Function:USB to serial port, indicator light, keys, current detection and etc.



RELATED INFORMATION FOR DOWNLOADING

DESPI-C03 Specification

DESPI-C03-SCH

Raspberry Pi User Manual

DEArduino UNO for EPD-SCH

ESP32-SCH

ESP8266 for EPD-SCH

DESPI V3.0 Specification

DEArduino-03 Spec

ESP8266-03 Specification

PLEASE FEEL FREE TO ASK US ANY QUESTIONS, JUST LEAVING A MESSAGE OR SENDING US AN EMAIL :lisha@good-display.com

Goodisplay is always here for you!
