Customizable 2.13 inch E Ink ePaper Front Light

Description

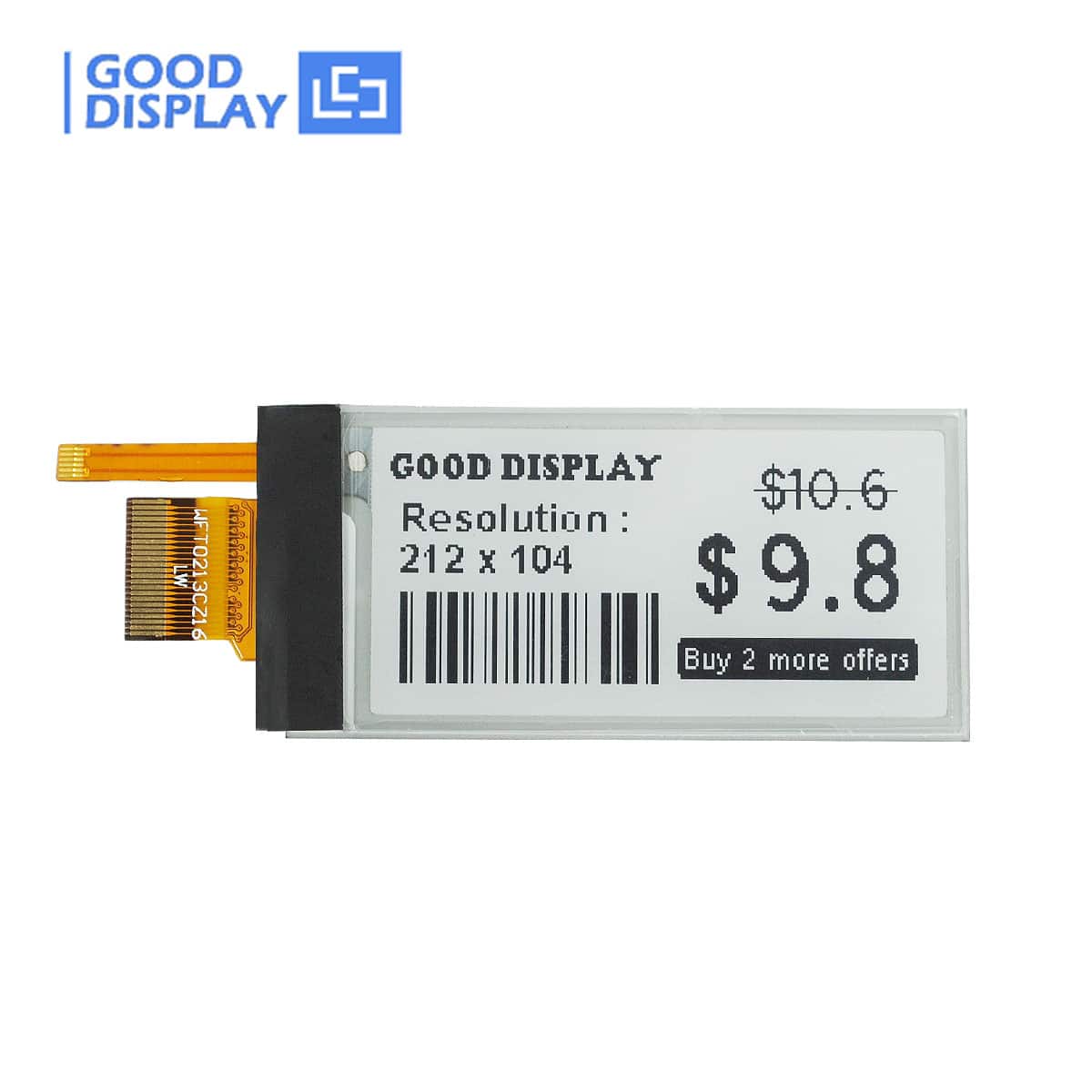

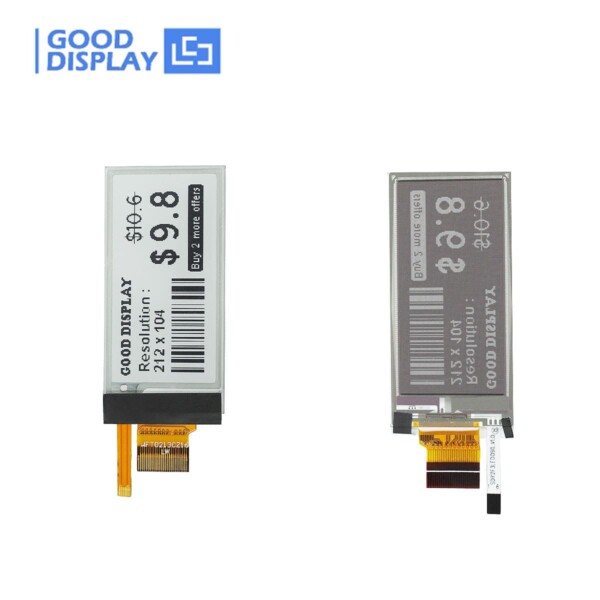

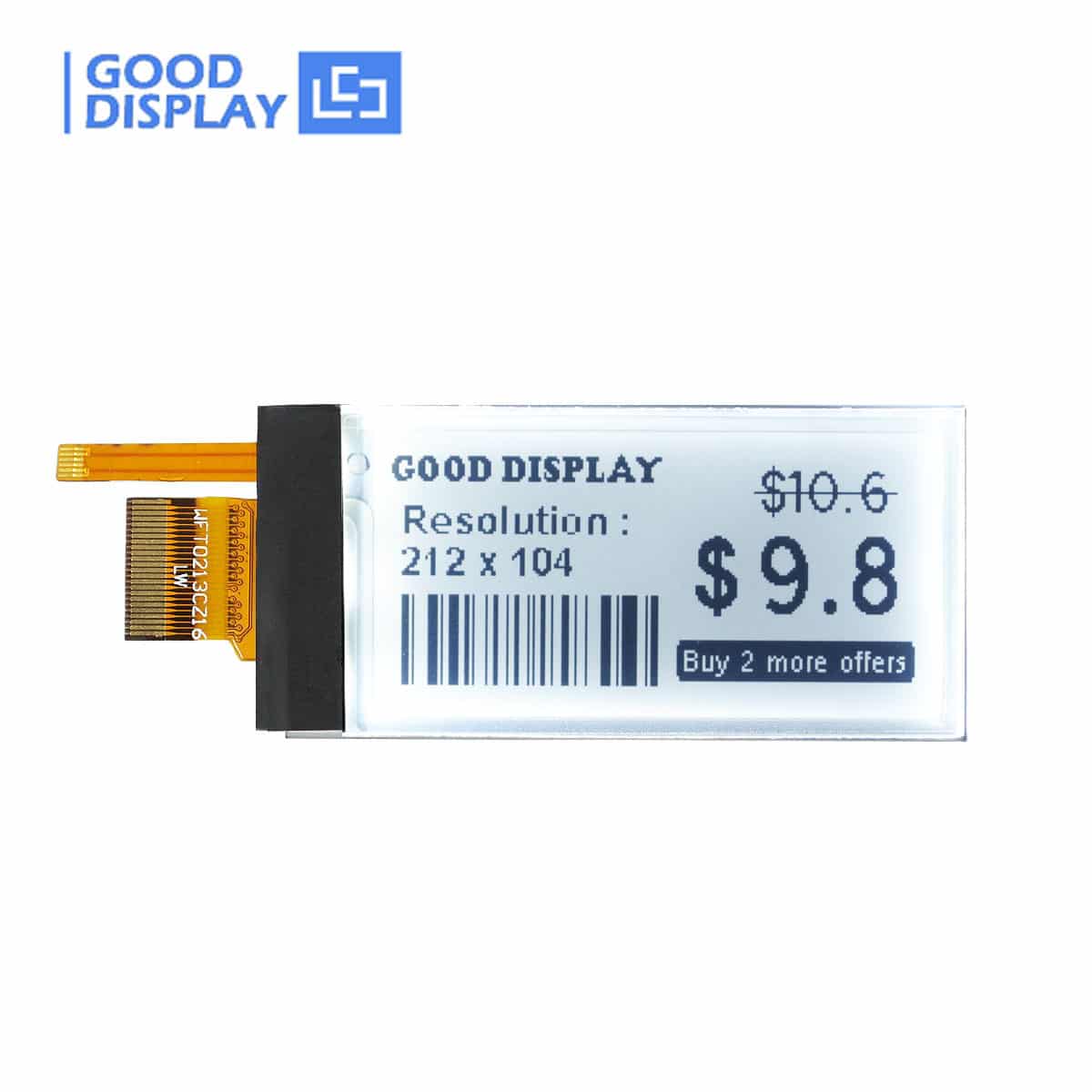

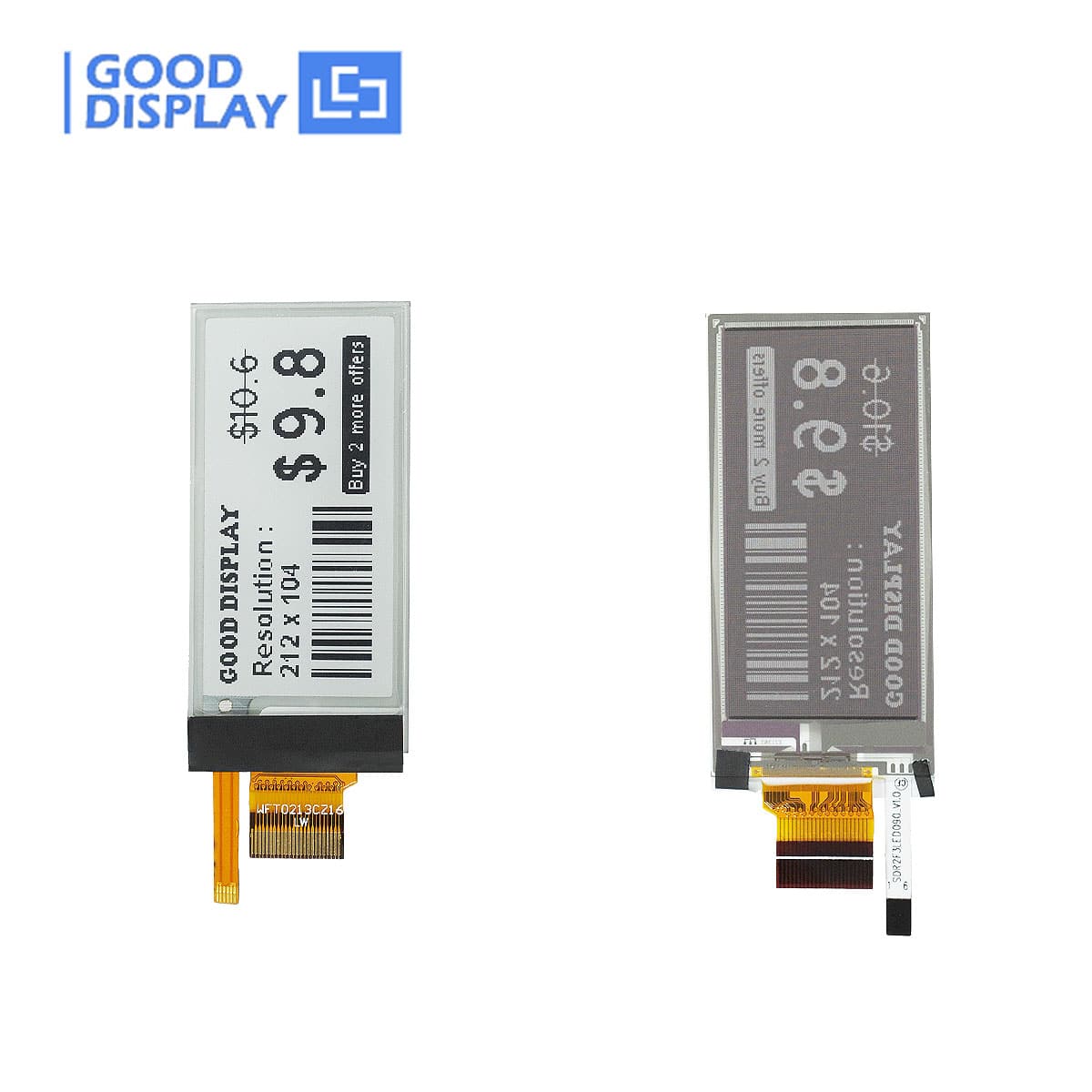

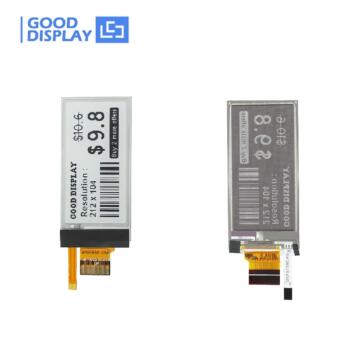

This is a 2.13 inch eink ePaper display equipped with fontlight backlit, with 212×104 resolution, SPI interface, capable of displaying images in black and white. Due to the bi-stable, the image once updated can LOOOOOONG-stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products.

*We also support customization service like adding front light/touch panel/glass cover onto your E Ink display! JUST CONTACT US!

FLEXIBLE PURCHASE OPTION

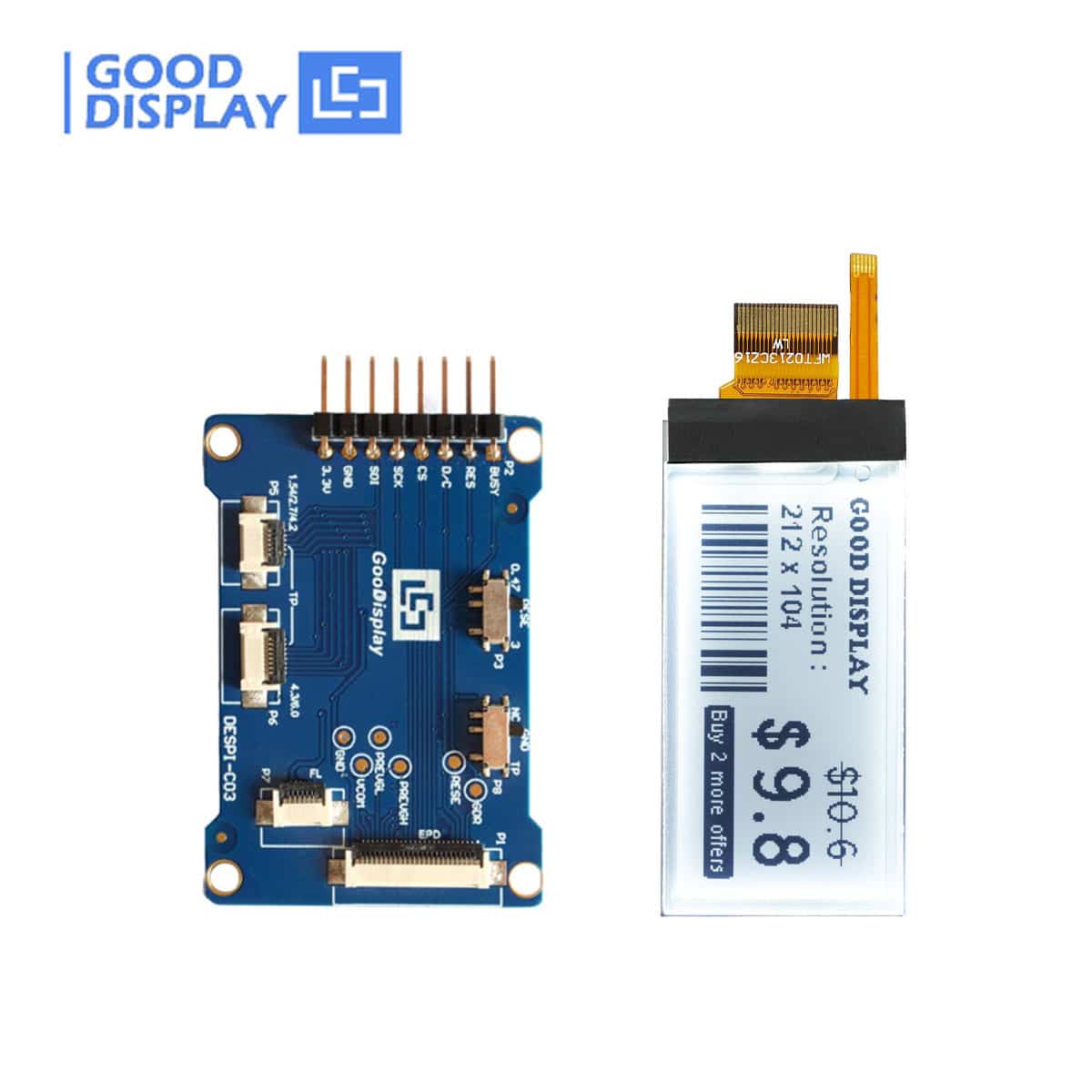

*For initial testing of ePaper with front light or touch screen or you wish to use Raspberry Pi, this DESPI-C03 adapter is the best choice!

 This adapter is used for connecting E-paper with front light or touch panel and strongly recommended when especially for Raspberry

*We also highly recommend to add Good Display’s ESP32 Evaluation Kit together!

FEATURE

• Supporting 4 Grayscale
• Equipped with front light
• Supporting partial refresh, refresh rate 0.3s/frame
• Bistable. (Image can stay on the display even when the power is off)
• I²C Signal Master Interface to read external temperature sensor
• Development platforms available STM32 / Arduino / Raspberry Pi / ESP8266 / ESP32

RELATED INFORMATION FOR DOWNLOADING

Front-light Drawing of 2.13 inch EPD

GDEW0213T5D Specification

GDEW0213T5D STM32 Sample Code

GDEW0213T5D Arduino Sample Code

GDEW0213T5D ESP8266 Sample Code

GDEW0213T5D ESP32 Sample Code

GDEW0213T5D Raspberry Pi Pico Sample Code



USING IMAGE TO ARRAY TO PROCESS YOUR IMAGE FOR THE EPAPER DISPLAY



SELECTION GUIDE

PART NUMBER	SIZE	IC	COLOR	GREYSCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	INTERFACE
GDEW0102T4	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0102I3F（FLEXIBLE）	1.02”	UC8175	BW	2	128×80	21.76×14.00	3	0℃~50℃	√	SPI
GDEW0154M09	1.54”	JD79653	BW	2	200×200	27.60×27.60	0.82	0℃~50℃	√	SPI
GDEW0154T8D	1.54”	UC8151D	BW	4	152×152	27.51×27.51	3	0℃~50℃	√	SPI
GDEH0154Z90	1.54”	SSD1681	BWR	2	200×200	27.00×27.00	15	0℃~40℃		SPI
GDEW0213I5FD（FLEXIBLE）	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEM0213B74	2.13”	SSD1680	BW	4	250×122	48.55×23.70	3	0℃~50℃		SPI
GDEY0213Z98	2.13”	SSD1680	BWR	2	250×122	48.55×23.70	14	0℃~40℃		SPI
GDEW0213T5D	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW0213T5D-FL01(With Frontlight)	2.13”	UC8151D	BW	4	212×104	48.55×23.71	3	0℃~50℃	√	SPI
GDEW026T0D	2.6”	UC8151D	BW	4	296×152	60.09×30.70	3	0℃~50℃	√	SPI
GDEW027W3	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEW027W3-T(With Touch Panel)	2.7”	EK79652	BW	4	264×176	57.29×38.19	3	0℃~50℃	√	SPI
GDEH029Z13	2.9”	UC8151D	BWR	2	296×128	66.90×29.06	15	0℃~40℃		SPI
GDEW029I6FD（FLEXIBLE）	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW029T5D-FL02(With Frontlight)	2.9”	UC8151D	BW	4	296×128	66.90×29.06	3	0℃~50℃	√	SPI
GDEW0371W7	3.71”	UC8171	BW	4	416×240	81.54×47.04	4	0℃~50℃		SPI

SIZE ABOVE 4.2”

PART NUMBER	SIZE	IC	GREYSCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	INTERFACE
GDEW042C37	4.2”	UC8176	2	400×300	84.80×63.60	28	0℃~40℃	SPI
GDEW042T2	4.2”	UC8176	4	400×300	84.80×63.60	3	0℃~50℃	SPI
GDEH042Z21	4.2”	UC8276	2	400×300	84.80×63.60	15	0℃~40℃	SPI
GDEW0583C64	5.83”	UC8159	2	600×448	118.80×88.26	25	0℃~40℃	SPI
GDEW0583T8	5.83”	UC8179	2	648×480	119.23×88.32	4	0℃~50℃	SPI
GDEW0583Z83	5.83”	UC8179	2	648×480	119.23×88.32	12	0℃~40℃	SPI
GDEY075Z08	7.5”	UC8179	2	800×480	163.20×97.92	12	0℃~40℃	SPI
GDEY075T7	7.5”	UC8179	4	800×480	163.20×97.72	3	0℃~50℃	SPI
