Description

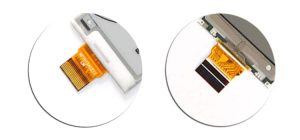

2.6 inch E-paper display with 296×152 resolution, SPI interface, four grayscale and partial update. Due to the bi-stable, the image once updated can LOOOONG-stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products. And we can support customized FPC, front light, touch panel, glass cover etc, JUST FEEL FREE TO CONTACT US!
- Paper-like readability.
- Sunlight and non-uniform light visibility.
- High reflectivity, high contrast & resolution.
- Viewing angle ~180 degree.
- Highly flexible.
- Ultra Low Power Consumption.
- Long-term Bi-stable Image content preserved without power.
- Prolonged battery life.
FLEXIBLE PURCHASE OPTION
*If you want to add DESPI-C02 individually into your CART, PLEASE CLICK THE PICTURE BELOW:
*If you want to add DESPI-C03 individually into your CART, PLEASE CLICK THE PICTURE BELOW:
FEATURE
- Supporting Four Grayscale
- Black and white monochrome is easy to read
- Versatile, portrait or landscape format
- Supporting partial refresh, refresh rate 0.3s/frame
- Bistable. (Image can stay on the display even when the power is off)
- I2C Signal Master Interface to read external temperature sensor
- Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
WATCH THE VIDEO
RELATED INFORMATION FOR DOWNLOADING
IC UC8151C to IC UC8151D Instructions
GDEW026T0D Arduino Sample Code
GDEW026T0D ESP8266 Sample Code
USING IMAGE TO ARRAY TO PROCESS YOUR IMAGE FOR THE EPAPER DISPLAY
SELECTION GUIDE OF SMALL SIZE E-PAPER DISPLAY
PART NUMBER | SIZE | IC | COLOR | GREYSCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | INTERFACE |
GDEW0102T4 | 1.02” | UC8175 | BW | 2 | 128×80 | 21.76×14.00 | 3 | 0℃~50℃ | √ | SPI |
GDEW0102I3F(FLEXIBLE) | 1.02” | UC8175 | BW | 2 | 128×80 | 21.76×14.00 | 3 | 0℃~50℃ | √ | SPI |
GDEW0154M09 | 1.54” | JD79653 | BW | 2 | 200×200 | 27.60×27.60 | 0.82 | 0℃~50℃ | √ | SPI |
GDEW0154T8D | 1.54” | UC8151D | BW | 4 | 152×152 | 27.51×27.51 | 3 | 0℃~50℃ | √ | SPI |
GDEH0154Z90 | 1.54” | SSD1681 | BWR | 2 | 200×200 | 27.00×27.00 | 15 | 0℃~40℃ | SPI | |
GDEW0213I5FD(FLEXIBLE) | 2.13” | UC8151D | BW | 4 | 212×104 | 48.55×23.71 | 3 | 0℃~50℃ | √ | SPI |
GDEM0213B74 | 2.13” | SSD1680 | BW | 4 | 250×122 | 48.55×23.70 | 3 | 0℃~50℃ | SPI | |
GDEY0213Z98 | 2.13” | SSD1680 | BWR | 2 | 250×122 | 48.55×23.70 | 14 | 0℃~40℃ | SPI | |
GDEW0213T5D | 2.13” | UC8151D | BW | 4 | 212×104 | 48.55×23.71 | 3 | 0℃~50℃ | √ | SPI |
GDEW0213T5D-FL01(With Frontlight) | 2.13” | UC8151D | BW | 4 | 212×104 | 48.55×23.71 | 3 | 0℃~50℃ | √ | SPI |
GDEW026T0D | 2.6” | UC8151D | BW | 4 | 296×152 | 60.09×30.70 | 3 | 0℃~50℃ | √ | SPI |
GDEW027W3 | 2.7” | EK79652 | BW | 4 | 264×176 | 57.29×38.19 | 3 | 0℃~50℃ | √ | SPI |
GDEW027W3-T(With Touch Panel) | 2.7” | EK79652 | BW | 4 | 264×176 | 57.29×38.19 | 3 | 0℃~50℃ | √ | SPI |
GDEH029Z13 | 2.9” | UC8151D | BWR | 2 | 296×128 | 66.90×29.06 | 15 | 0℃~40℃ | SPI | |
GDEW029I6FD(FLEXIBLE) | 2.9” | UC8151D | BW | 4 | 296×128 | 66.90×29.06 | 3 | 0℃~50℃ | √ | SPI |
GDEW029T5D | 2.9” | UC8151D | BW | 4 | 296×128 | 66.90×29.06 | 3 | 0℃~50℃ | √ | SPI |
GDEW029T5D-FL02(With Frontlight) | 2.9” | UC8151D | BW | 4 | 296×128 | 66.90×29.06 | 3 | 0℃~50℃ | √ | SPI |
GDEW0371W7 | 3.71” | UC8171 | BW | 4 | 416×240 | 81.54×47.04 | 4 | 0℃~50℃ | SPI |
PLEASE FEEL FREE TO ASK US ANY QUESTIONS, JUST LEAVING A MESSAGE OR SENDING US AN EMAIL :lisha@good-display.com
