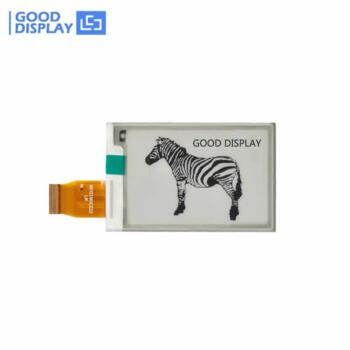

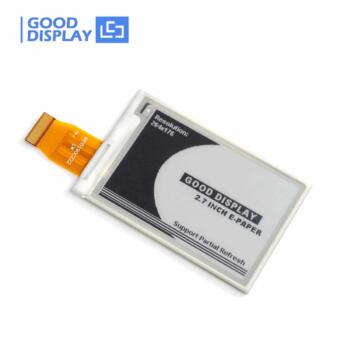

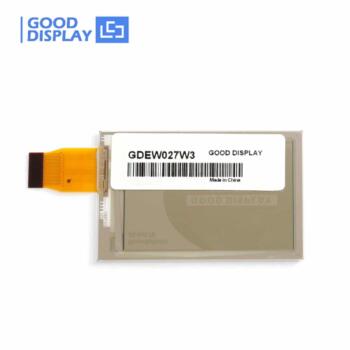

2.7 inch E-paper touch screen 264*176

by GoodisplayEpaper 6 orders


$17.00

Part Number: GDEW027W3-T
Type: Dot Matrix
Size: 2.7 inch
IC: EK79652
RESOLUTION: 264×176
OUTLINE SIZE(mm): 70.42*45.8*1.3
ACTIVE SIZE(mm): 57.288×38.192
PIXEL PITCH(mm): 0.217×0.217
OPERATING TEMP.: 0℃~50℃
STORAGE TEMP.: -25℃~70℃
CONNECTOR: 24 Pin FPC
MAX GRAYSCALE: 4
COLOR: Black,White
INTERFACE: SPI
FULL REFRESH(s): 3
POWER CONSUMPTION OF THE REFRESH(mW): 26.4
STANDBY POWER CONSUMPTION (mW): 14.3

Share
Tweet
Share
Reddit
Vote
Email

Out of stock

SKU: GDEW027W3-T Category: Tags: , , , , , , , , ,

Description

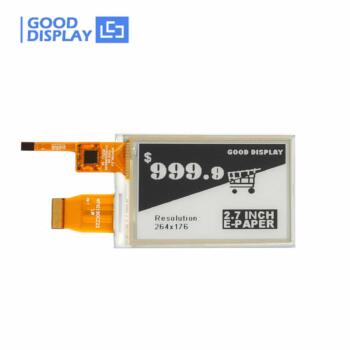

2.7 inch eink ePaper display with 264×176 resolution, SPI interface, four grayscale displaying with touch screen. Due to the bi-stable, the image once updated can stay on the display even when power is completely disconnected. The image is also high contrast and readable under sun just like printed paper. It is a perfect match for appliances like e-shelf label, smart tag, smart home application, industrial instrument and other related products.

FLEXIBLE PURCHASE OPTION

*If you want to purchase the GDEW027W3, PLEASE CLICK HERE

*For initial testing of ePaper with front light or touch screen or you wish to use Raspberry Pi, this DESPI-C03 adapter is the best choice!

 This adapter is used for connecting E-paper with front light or touch panel and strongly recommended when especially for Raspberry

*We also highly recommend to add Good Display’s ESP32 Evaluation Kit together!

ESP32-03 E-INK display module for touchable e-paper screen, support wifi and BLE
ESP32-03 E-INK display module for touchable e-paper screen, support wifi and BLE

FEATURE

  • Supporting Four Grayscale

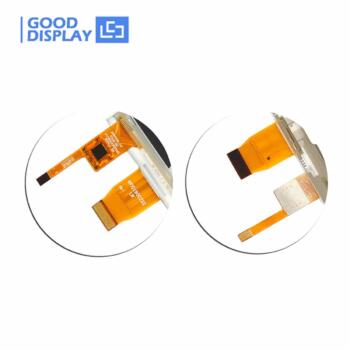

  • Equipped with touch panel
  • Black and white monochrome is easy to read
  • Versatile, portrait or landscape format
  • Supporting partial refresh, refresh rate 0.3s/frame
  • Bistable. (Image can stay on the display even when the power is off)
  • I2C Signal Master Interface to read external temperature sensor
  • Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP3

WATCH THE VIDEO



RELATED INFORMATION FOR DOWNLOADING

GDEW027W3 Specification

IC Driver EK79652

GDEW027W3 Bitmap Conversion

GDEW027W3 STM32 Sample Code

GDEW027W3 Arduino Sample Code

GDEW027W3 Raspberry Pi Sample Code

GDEW027W3 ESP8266 Sample Code

GDEW027W3 ESP32 Sample Code

2.7 inch front-light Specification

GDEW027W3 STM32 Sample Code

Touch Panel Drawing for 2.7 inch E-paper Display

GDEW027W3-T Specification

IC Driver datasheet for 2.7 inch touch screen

Demo code for 2.7” touch panel



SELECTION GUIDE

PART NUMBERSIZEICCOLORGREYSCALERESOLUTIONACTIVE SIZE(mm)FULL REFRESH TIME (S)OPERATING TEMP.PARTIAL REFRESHINTERFACE
GDEW0102T41.02”UC8175BW2128×8021.76×14.0030℃~50℃√SPI
GDEW0102I3F（FLEXIBLE）1.02”UC8175BW2128×8021.76×14.0030℃~50℃√SPI
GDEW0154M091.54”JD79653BW2200×20027.60×27.600.820℃~50℃√SPI
GDEW0154T8D1.54”UC8151DBW4152×15227.51×27.5130℃~50℃√SPI
GDEH0154Z901.54”SSD1681BWR2200×20027.00×27.00150℃~40℃SPI
GDEW0213I5FD（FLEXIBLE）2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEM0213B742.13”SSD1680BW4250×12248.55×23.7030℃~50℃SPI
GDEY0213Z982.13”SSD1680BWR2250×12248.55×23.70140℃~40℃SPI
GDEW0213T5D2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEW0213T5D-FL01(With Frontlight)2.13”UC8151DBW4212×10448.55×23.7130℃~50℃√SPI
GDEW026T0D2.6”UC8151DBW4296×15260.09×30.7030℃~50℃√SPI
GDEW027W32.7”EK79652BW4264×17657.29×38.1930℃~50℃√SPI
GDEW027W3-T(With Touch Panel)2.7”EK79652BW4264×17657.29×38.1930℃~50℃√SPI
GDEH029Z132.9”UC8151DBWR2296×12866.90×29.06150℃~40℃SPI
GDEW029I6FD（FLEXIBLE）2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW029T5D2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW029T5D-FL02(With Frontlight)2.9”UC8151DBW4296×12866.90×29.0630℃~50℃√SPI
GDEW0371W73.71”UC8171BW4416×24081.54×47.0440℃~50℃SPI

SIZE ABOVE 4.2”

PART NUMBERSIZEICGREYSCALERESOLUTIONACTIVE SIZE(mm)FULL REFRESH TIME (S)OPERATING TEMP.INTERFACE
GDEW042C374.2”UC81762400×30084.80×63.60280℃~40℃SPI
GDEW042T24.2”UC81764400×30084.80×63.6030℃~50℃SPI
GDEH042Z21 4.2”UC82762400×30084.80×63.60150℃~40℃SPI
GDEW0583C645.83”UC81592600×448118.80×88.26250℃~40℃SPI
GDEW0583T85.83”UC81792648×480119.23×88.3240℃~50℃SPI
GDEW0583Z835.83”UC81792648×480119.23×88.32120℃~40℃SPI
GDEY075Z087.5”UC81792800×480163.20×97.92120℃~40℃SPI
GDEY075T77.5”UC81794800×480163.20×97.7230℃~50℃SPI
